1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber

1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber

  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
Ürün ayrıntıları:
Menşe yeri: Guangzhou, Çin
Marka adı: GUOMAT
Sertifika: ISO/TS16949:2009
Model numarası: 1B5500
Ödeme & teslimat koşulları:
Min sipariş miktarı: 5 adet
Fiyat: USD49.9-59.9/PC
Ambalaj bilgileri: Güçlü karton kutusu veya müşteri gereksinimi olarak
Teslim süresi: 3-7 iş günü
Ödeme koşulları: L/C, T/T, Western Union veya diğerleri
Yetenek temini: 1000 adet/hafta
İletişim
Detaylı ürün tanımı
Öğe Adı: Endüstriyel Hava Yayı Malzeme: Kauçuk ve çelik
Oem: Evet Garanti: 12 ay
Goodyear: 1b5-500 Yay ağırlığı: 1kg
Hava takımı: 1/4 "npt Tampon: HAYIR
Vurgulamak:

Goodyear single convoluted air spring

,

Rubber air shock absorber

,

Industrial air spring with warranty

1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
Product Description
Item Name: Industrial Air Spring
Model No.: 1B5510
Brand: GUOMAT
Warranty: 12 Months
Type: Convoluted Air Spring
Service Offered: OEM
Suspension System: Air Spring Suspension
Applications: For Industrial Machine
Sample: Available
Type Of Goods: Air Spring/Air Bags/Air Ballons
Material: Imported Natrul Rubber
Operation: Gas-filled
Package: Standard Packing Or Customized
OEM Number/Cross Number
  • Goodyear OEM Number: 1B5-500
  • Goodyear OEM Number: 1B 5-500
  • Goodyear OEM Number: 1B5 500
  • Goodyear OEM Number: 1B5500
  • Firestone OEM Number: W01-358-7001
  • Firestone OEM Number: W01 358 7001
  • Firestone OEM Number: W013587001
  • Firestone OEM Number: WO1-358-7001
  • Firestone OEM Number: WO1 358 7001
  • Firestone OEM Number: WO13587001
  • Contitech OEM Number: FS50-5
  • Contitech OEM Number: FS 50-5
  • Contitech OEM Number: FS50-5 CI
  • Contitech OEM Number: FS 50-5 CI
  • Contitech OEM Number: FS50-5 CI 1/4 NPT
  • Contitech OEM Number: FS 50-5 CI 1/4 NPT
  • Contitech OEM Number: FS50-5 CI 1/4 NPT CA
  • Contitech OEM Number: FS 50-5 CI 1/4 NPT CA
  • Enidine OEM Number: YI-1B5-500
  • Enidine OEM Number: YI 1B5-500
Technical Data
Air Fitting:
1/4" NPT, Centered
End Plate Diameter:
3.4"
Mounting Holes:
Two 3/8"-16 UNC
Mounting Hole Spacing:
1.75" Center-to-Center
Overall Height:
3.8" Max.
Bumper:
Not Included / No
Single Convoluted Air Bellow-1B5
Assembly Number Maximum Stroke(in.) Approximate System Natural Frequency Hz Design Height Range(in.)
1B5-500 | 1B5-502 2.00 3.25 2.5-3.0
1B5-510 | 1B5-512 3.00 2.75 2.5-4.0
1B5-520 | 1B5-521 3.00 2.67 3.5-5.0

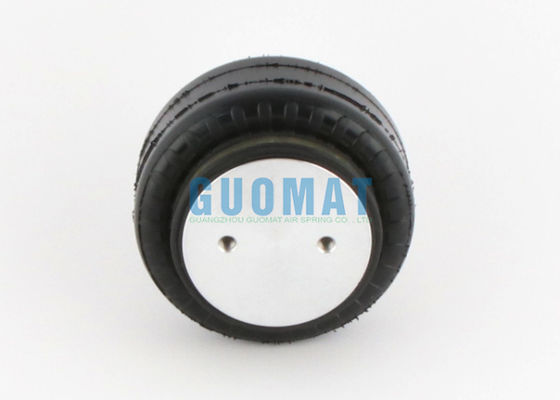

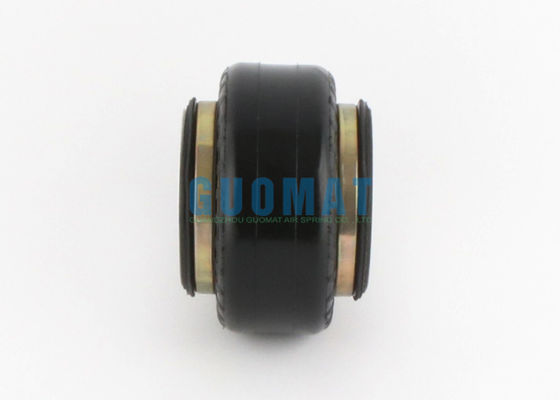

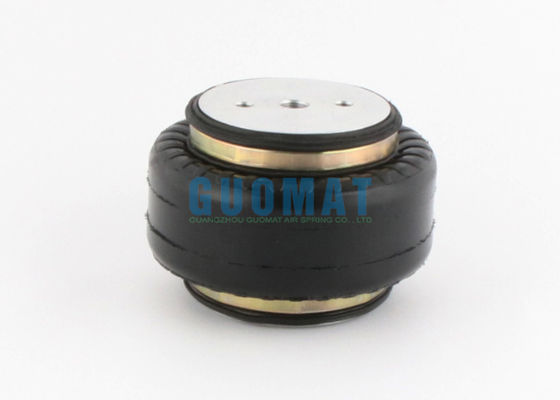

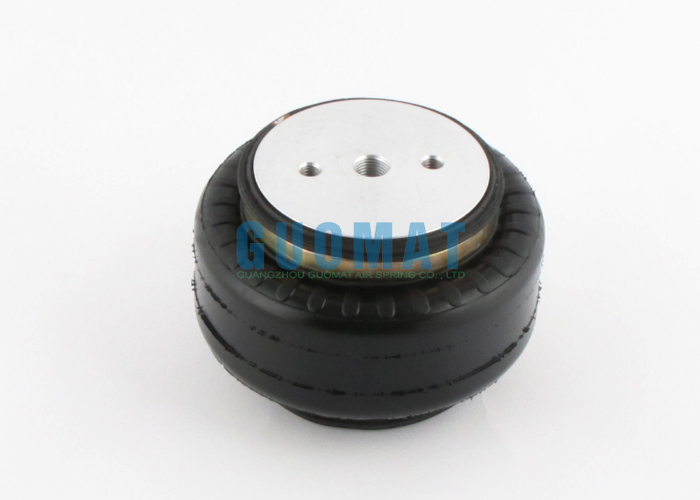

Product Images
1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber 0 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber 1
