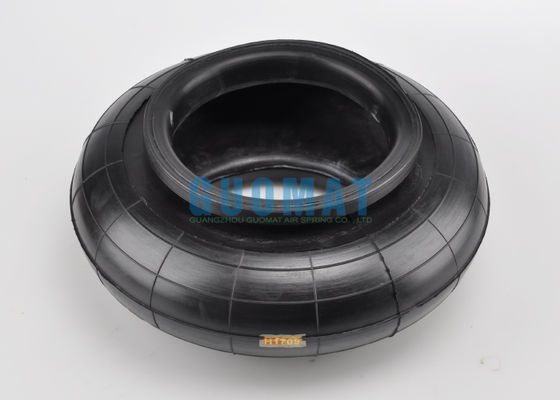

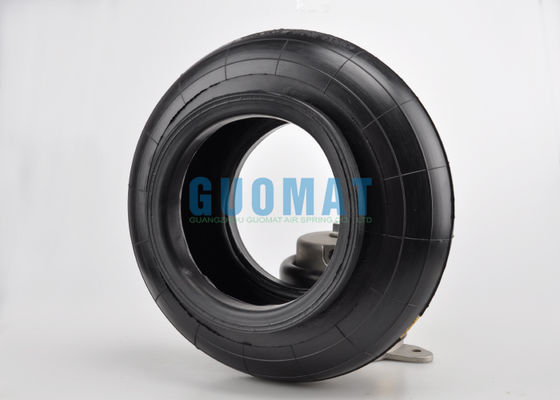

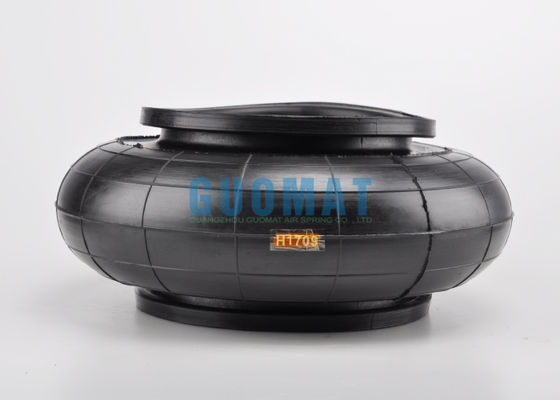

V1B20 Vibracoustic Single Convoluted Air Spring 1B20 Phoenix Air Bellow Without Bead Rings

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	230116-1

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$69.9-89.9/pc
Ambalaj bilgileri:	Güçlü karton kutusu veya müşterilerin ihtiyaç duyduğu gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C, T/T, Western Union
Yetenek temini:	Haftada 1000pcs

İletişim

Detaylı ürün tanımı

Ürün adı:	Kauçuk Hava Yayı	Garanti:	12 ay
İşlev:	Şoku azaltmak	Şok Emici Türü:	Gaz dolu
Basınç yeteneği:	0,2-0,8 Milyon Pa	Foenix:	1B 20
Ağırlık:	1.5kg	Diğer İsim:	Hava körükleri
Vurgulamak:	Vibracoustic single convoluted air spring , Phoenix air bellow without bead rings , Industrial air spring with warranty

V1B20 Vibracoustic Single Convoluted Air Spring 1B20 Phoenix Air Bellow Without Bead Rings

Product Specifications

Attribute	Value
Product Name	Rubber Air Spring
Warranty	12 months
Function	Reduce Shock
Shock Absorber Type	Gas-Filled
Pressure Ability	0.2-0.8 M Pa
Model Number	230116-1
Color	Black
Application	For Concrete Brick Machine
Weight	1.5KG

Compatible Manufacturer Numbers

GUOMAT Air Spring 230116-1

GUOMAT Air Spring 230/116-1

VIBRACOUSTIC Air Bellow: V1B20

VIBRACOUSTIC Air Bellow: V 1B20

VIBRACOUSTIC Air Bellow: V 1 B20

VIBRACOUSTIC Air Bellow: V 1 B 20

PHOENIX Air Bags: 1B20

PHOENIX Air Bags: 1B 20

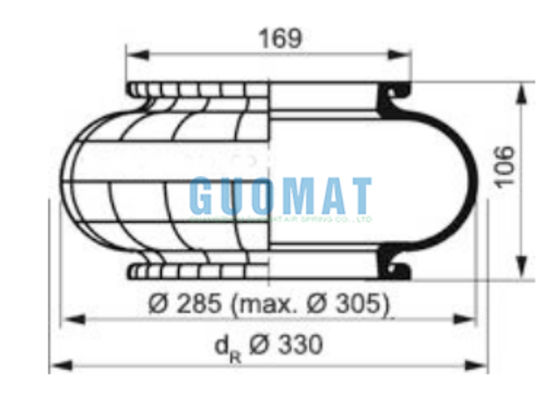

Technical Data

Load capacity at overpressure pu = 5 bar: 16.0 kN
Load capacity at overpressure pu max. = 7.0 bar: 23.8 kN
Load capacity at overpressure pu min. = 1.0 bar: 2.6 kN
Spring travel (min. height): 55 mm
Spring travel (max. height): 175 mm
Dimension d max.: 305 mm
Space requirement (dR): 330 mm
Design height (h): 115 mm
Natural frequency: 2.60 (5 bar) Hz

Advantages of our Rubber Industrial Air Springs

1. Superior performance and comfort

Natural vibration isolation and noise reduction capabilities
Adjustable stiffness for "active" suspension
Constant and controllable height

2. Significant operational and economic advantages

Multiple stiffness and load capacities
Longer service life
Flexible installation and space-saving

3. Safety advantages

Fail-safe mode
Lighter weight

Convoluted Air Spring Without Bead Ring

Part No.	Outer Diameter (mm)	Diameter (mm)	Height (mm)
V1B12	228	150
V1B20	285	172
V2B07R	189	125
V2B12R	228	150
V2B12RA	240	150
V2B15R	250	129
V2B15R-S0	250		170
V2B15R-S1	250		170
V2B15R-S2	250		170
V2B15R-S3	250		170
V2B15R-S4	250		170
V2B20R	285	172
V2B20R-9	285	172
V2B22R	295	219
V2B22RA	320	219
V2B22RA-9	320	219
