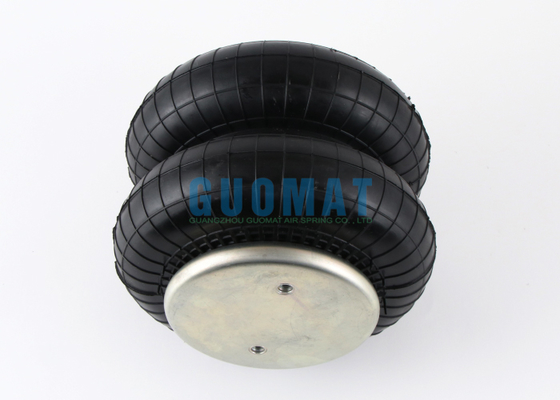

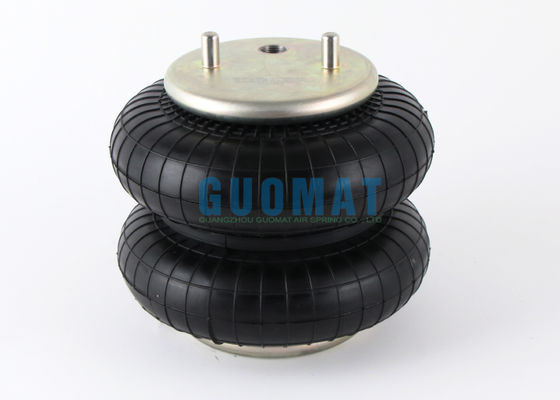

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

Ürün ayrıntıları:

Menşe yeri:	Guangzhou, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/Ts16949:2009
Model numarası:	2B6905

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$59.9-69.9/pc
Ambalaj bilgileri:	Müşteri gereksinimlerine göre karton ambalaj veya ambalaj
Teslim süresi:	5-8 iş günü
Ödeme koşulları:	L/C, T/T, Western Union
Yetenek temini:	haftada 10.000

İletişim

Detaylı ürün tanımı

Yay Malzemesi:	Doğal kauçuk	Kalite:	%100 Test Edildi
fonksiyon:	Şoku Azalt	Garanti:	12 ay
ateş taşı:	W01-358-6905	Goodyear:	2B9-206
Felç:	81mm-274mm	Tampon Bloğu:	İle birlikte
Vurgulamak:	Contitech replacement air spring , Firestone convoluted air bags , industrial air spring with warranty

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

Attribute	Value
Spring Material	Natural Rubber
Quality	100 % Tested
Function	Reduce Shock
Warranty	12 Months
Firestone	W01-358-6905
Goodyear	2B9-206
Stroke	81mm-274mm
Buffer Block	With

Product Description

Brand: GUOMAT

Model No.: 2B6905

Bellows No.: 2B200

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

Cross Reference Number

Firestone	W01-358-6905
Contitech	FD 200-19 315
Goodyear	ZB9-206/209
Goodyear	578923200/2
Triangle	6325/4315
EZ Ride	8030120
Dayton	3546905
Leland	Sc2071
Navistar	1685175C1
Hendrickson	458431
Hendrickson	S3518/S5270
Ridewell	1003586905C
SAF Holland	57006905
Tuthill	6389
Watson&Chalin	As0020
Silent Drive	As6882

Technical Data

Nut / Blind Nut
Center Distance Between Threaded Holes and Air Holes: 38.5mm
Screw Center Distance of Top Cover Plate: 89 mm
Screw Center Distance of Bottom Cover Plate: 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet: 1/4 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 251.5 mm
The Working Stroke: MAX 274 mm to MIN 81 mm
Maximum Height: 274 mm
Minimum Height: 81 mm
Compression Height: 193 mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
Without Girdle Hoop
