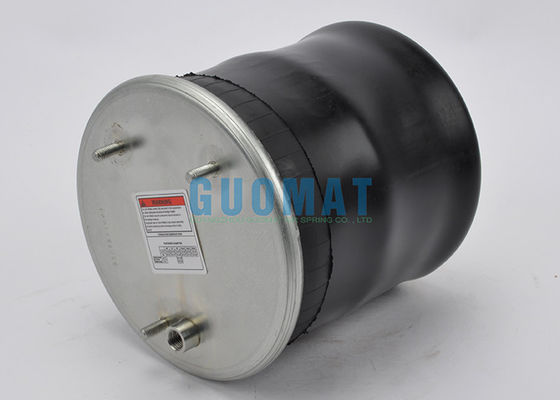

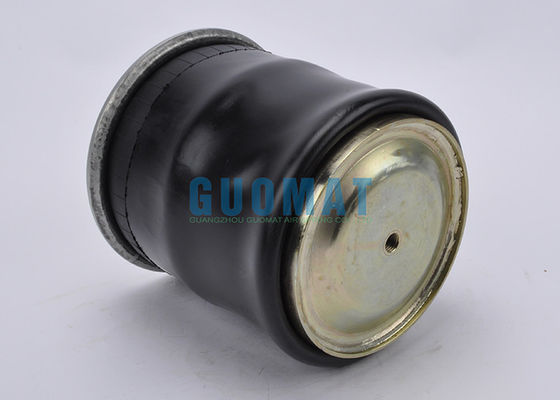

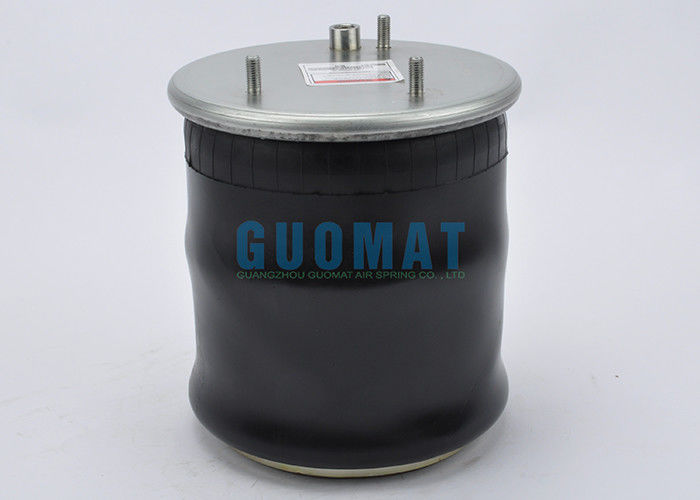

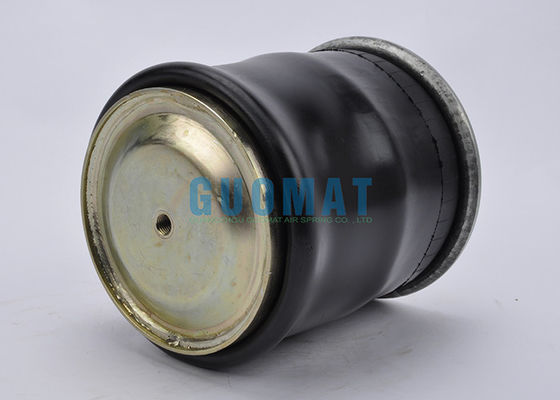

887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber

887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber

  • 887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber
  • 887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber
  • 887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber
  • 887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber
887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber
Ürün ayrıntıları:
Place of Origin: GuangDong, China
Marka adı: GUOMAT
Sertifika: ISO/TS16949:2009
Model numarası: 1T8683
Ödeme & teslimat koşulları:
Minimum Order Quantity: 6pcs
Fiyat: $69.9-99.9/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Ödeme koşulları: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
İletişim
Detaylı ürün tanımı
Ürün Adı: Körük, Hava Yastığı Süspansiyonu, Gazlı Yay Warranty: 12 Months
Malzeme: Kauçuk + Çelik Package: Standard Packing or Customized
Bahar Tyle: Hava Sürüş Süspansiyon Sistemi Sample: Available
Application: For Truck/Trailer Felç: 167mm-427mm
Vurgulamak:

Kauçuk kamyon süspansiyonu hava yayı

,

W01-M58-8683 Kamyon süspansiyonu hava yayı

,

887MK1 Kamyon Süspansiyonu Hava Baharı

887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber

Product Information



Product Name: Truck Air Spring
GUOMAT NO.: 1T8683
Factory Warranty: 1 Year
Application: Mounted on truck or trailer suspension
Firestone: W01-M58-8683 / W01 M58 8683 / W01M588683
Firestone: WO1-M58-8683 / WO1 M58 8683 / WO1M588683
Firestone: 1T15LNR3 /  1T 15LNR3
Contitech: 887MK1 / 887 M K1
Contitech: 60211
Airtech: 134782
Airtech: 38683K
Granning: 16224F
Meritor: MLF7053
VDL/DAF: 0392022
DAF: 0392022


1T8683 Truck Air Spring Technical Data

Top cover plate diameter

239mm

Bolt/Stud

M10X1.5

Air Inlet

M16X1.5

Center distance between studs

134mm

Bottom piston width

192mm

Piston

Steel

Bottom piston height

137mm

Max.height

427mm

Min.height

167mm

The outer diameter

231mm


Is Air Suspension Harmful to Daily Driving?
Whether air suspension is "harmful" in daily driving depends on the specific usage scenario, vehicle purpose and personal needs. In general, air suspension itself does not cause direct harm to daily driving.

1.Advantages of air suspension (benefits for daily driving)
Improved comfort
Air springs can automatically adjust the hardness and softness according to road conditions, absorb bumps more efficiently, and are especially suitable for urban paved roads, providing a smoother ride experience.

Adjustable height
Raise the chassis to cope with rugged roads, or lower the body to improve high-speed stability, enhance passability and handling flexibility.

Load adaptation
Automatically adjust the suspension height when loaded to avoid "tail collapse" and keep the body posture balanced.

Sense of technology and luxury
Common in high-end models, enhance the "high-end" driving experience.


2. Precautions in daily driving
Avoid frequent adjustment of suspension height: Excessive use of the lifting function may accelerate component wear.

Regularly check the air circuit sealing: timely repair if the body tilts or the suspension alarm is found.
Be careful when passing through bad road conditions: it is recommended to slow down on large potholes or gravel roads to reduce the impact on the airbag.
When parking for a long time, pay attention to: keep the suspension at a normal height to avoid long-term compression and deformation of the airbag.


1T15LR SERIES Truck Suspenison Spring

W01-M58-8555
W01-M58-8556
W01-M58-8557
W01-M58-8558
W01-M58-8660
W01-M58-8661
W01-M58-8662
W01-M58-8663
W01-M58-8472
W01-M58-0780
W01-M58-8462
W01-M58-8477
W01-M58-8549
W01-M58-8552
W01-M58-8681
W01-M58-8683
W01-M58-8690



Product Picture
887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber 0887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber 1
