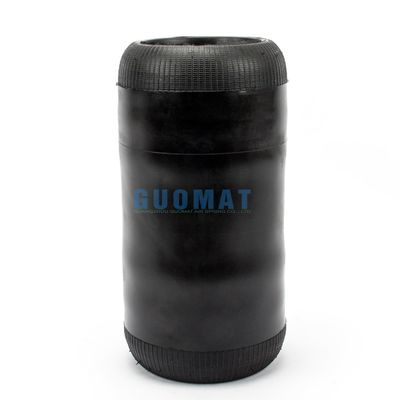

Reduce Vibration 769N Contitech 1E 18 Phoenix Rubber Air Spring For Bus Air Suspension
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
Key word: Air Spring
Spring Material:
Rubber
Warranty: One year
Shock Absorber Type:Gas-Filled
Position: Front or Rear
Natural Outer Diameter:190(mm)
Opening Diameter:130.8(mm)
Height:380(mm)
Sample:Acceptable
Cross Information
| Fire stone |
W01-095-0204 1R1A380260 |
| Contitech |
769N |
| Goodyear |
8053 |
| Phoenix |
1E18 |
| Taurus |
B156 |
| Dunlop FR |
D10S02 |
| CF Gomma |
1SC 240-30 |
OEM Information
| IRIS BUS |
5.000.786.640 |
| IRIS BUS |
5.000.786.641 |
| IRIS BUS |
5.000.805.284 |
| MENARINI |
252933 |
| RVI |
5.000.805.284 |
| VAN HOOL |
624 319 860 |
Applications of Bus Air Spring Suspension
City Buses: Frequent starts and stops, and fluctuating passenger loads, allow air springs to automatically adjust vehicle height to maintain stability.
Long-distance/Tourist Buses: Reduce road vibrations during long journeys, enhancing passenger comfort.
Low-floor Buses: Precisely control vehicle height to facilitate access for wheelchairs and strollers.
Electric Buses: Meet the lightweight and energy-conscious demands of electric vehicles, improving energy efficiency.
Core Advantages of Bus Air Spring Suspension
Adaptive Load Adjustment: By adjusting air pressure, the vehicle maintains a constant vehicle height, regardless of whether it is empty or fully loaded, avoiding the "collapse" phenomenon associated with traditional leaf springs.
Excellent Shock Absorption: The air spring's adjustable elastic modulus effectively absorbs road bumps (such as speed bumps and potholes), reducing passenger fatigue.
Extended Vehicle Life: Reduces impact on the chassis and body, protects mechanical components (such as axles and tires), and reduces maintenance costs.
Height Adjustability: Lower the vehicle when stopped for easier boarding and disembarking, or raise the vehicle to handle challenging road conditions (such as snowy areas or road construction).
Noise Control
Compared to metal springs, this reduces vibration noise and improves quietness.

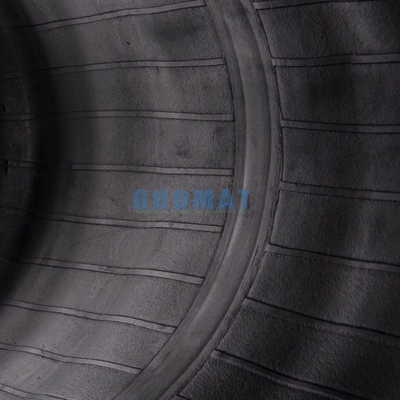

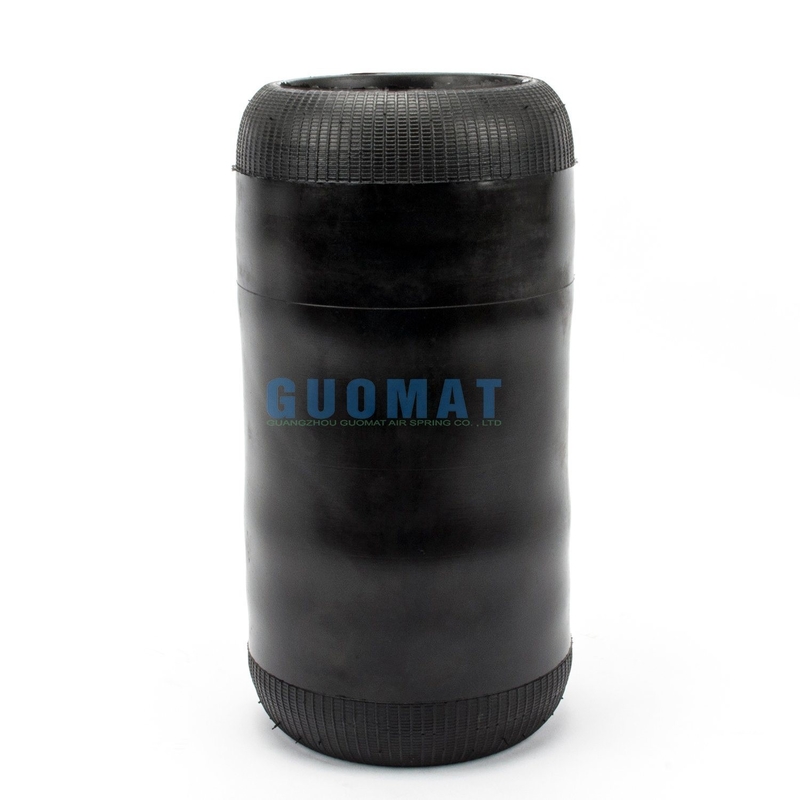

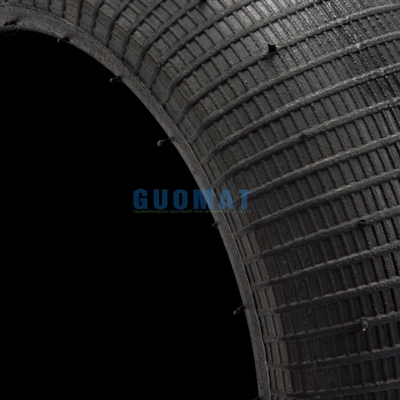

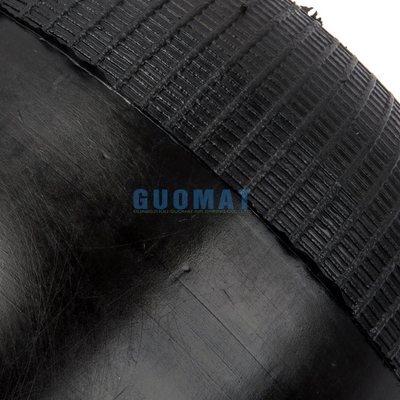

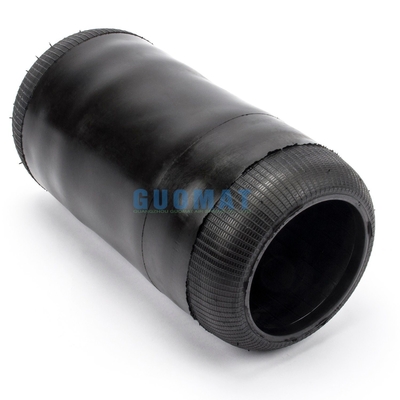

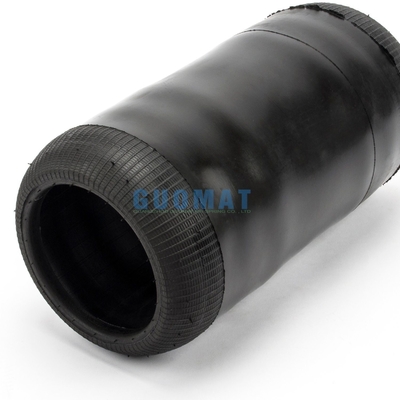

Product details picture
