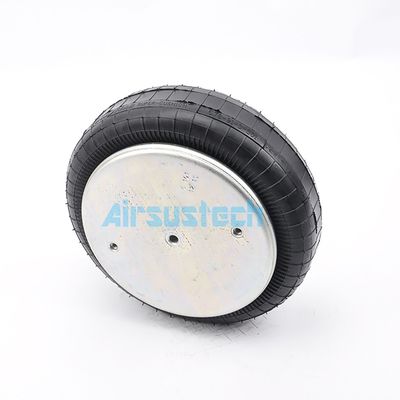

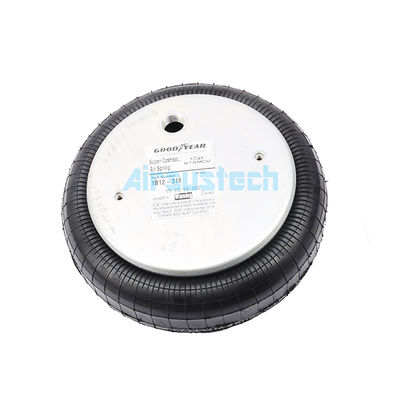

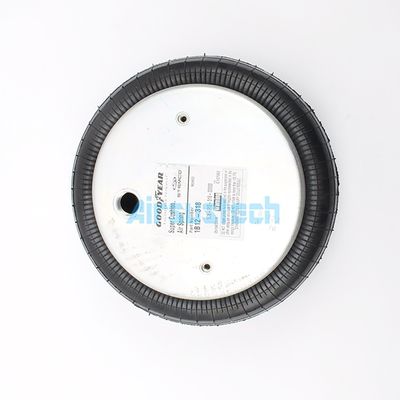

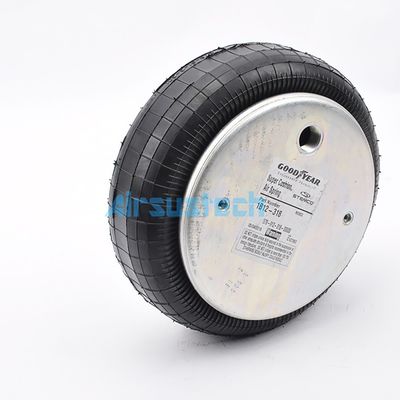

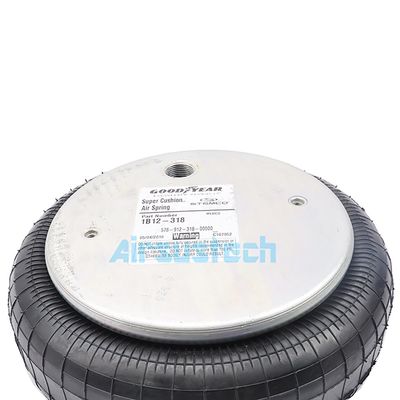

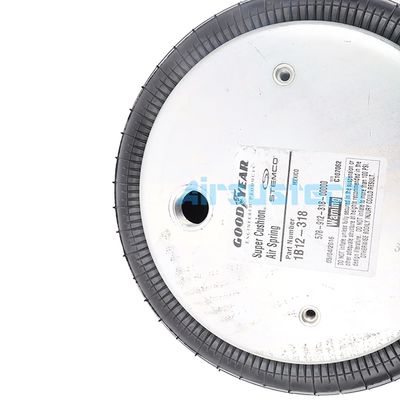

Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

Ürün ayrıntıları:

Menşe yeri:	Meksika
Marka adı:	GOODYEAR
Sertifika:	ISO/TS16949:2009
Model numarası:	3B8030

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$99.9-159.9/pc
Ambalaj bilgileri:	Güçlü karton kutusu veya müşterilerin ihtiyaç duyduğu gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	T/T, Western Union, L/C
Yetenek temini:	Haftada 1000pcs

İletişim

Detaylı ürün tanımı

Model No.:	1B12-318	Yaylı malzeme:	Lastik
Kalite:	% 100 test edildi	Firma:	Şoku azaltmak
Taşıma paketi:	Güçlü Kartonlar	HS kodu:	8708809000
Satış sonrası hizmet:	12 ay	Tip:	Gaz dolu

Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

Product Description

The Goodyear Air Spring is a flexible rubber bladder supported by compressed air. It is essentially an inflatable rubber container that replaces traditional steel coil or leaf springs.

GOODYEAR: 1B12-318

GOODYEAR: 1B 12-318

GOODYEAR: 1B12 318

GOODYEAR: 578-91-3-301

GOODYEAR: 578 91 3 301

GOODYEAR: 578913301

Refer No.

Continental ContiTech: FS 330-11 CI 62743
Continental ContiTech: FS 330-11 3/4 M8
Continental ContiTech: FS 330-11 G3/4 M8
Continental ContiTech: FS 330-11 CI G3/4
Continental ContiTech: FS 330-11 CI G3/4 M8
Continental ContiTech: FS 330-11 CI / FS330-11CI / FS33011CI
Continental ContiTech Bellow: FS 330-11 / FS330-11 / FS33011
Fire-stone No.: W01-M58-6011 / W01 M58 6011 / W01M586011
Fire-stone Style: 19
Dunlop FR: 12"x1 S12100
Enidine: YI-1B12-318 / YI 1B12 318 / YI1B12318
Norgren:PM/31121 / PM 31121 / PM31121
Nominal (inch) x convolutions: 12″ x 1 / 12"x1 / 12x1

Specifications and Detailed Technical Parameters: Goodyear 1B12-318

Maximum diameter at 7 bar: 328mm
Maximum height: 140mm
Maximum travel: 89mm
Bead type: 3
Dim. A( Blind hole center): 158 mm
Dim. B: 73mm
Natural frequency at 5 bar: 2.5 fn( Hz)
Material: 2 layer standard line

About W01-M58-6011 Firestone Air Spring

Style 19	Blind nuts,1/4BSP	W01-M58-6008
Double Convoluted	Blind nuts,1/4BSP,bumper	W01-M58-6373
	Blind nuts,3/4BSP	W01-M58-6011
	Blind nuts,3/4BSP,bumper	W01-M58-6372
	Countersunk steel bead rings,40mm bolts,nuts,washers	W01-M58-6975
	Rubber bellows only	W01-358-0134

Fore Table
Assembly Height(mm)	Volume@7 BAR(cu cm)	EFF Area@7 BAR(cm sq)	kN Force
Assembly Height(mm)	Volume@7 BAR(cu cm)	EFF Area@7 BAR(cm sq)	@3 BAR	@4 BAR	@5 BAR	@6 BAR	@7 BAR
130	6379	345	9.61	13.28	16.74	20.6	24.15
120	6004	398	11.24	15.49	19.48	23.85	27.87
110	5555	444	12.67	17.39	21.84	26.65	31.1
100	5093	482	13.85	18.9	23.74	28.92	33.71
90	4566	513	14.87	20.18	25.35	30.86	35.94
80	4048	539	15.67	21.16	26.59	32.38	37.69
70	3474	559	16.27	21.93	27.58	33.60	39.13
60	2923	574	16.68	22.48	28.26	34.45	40.15
