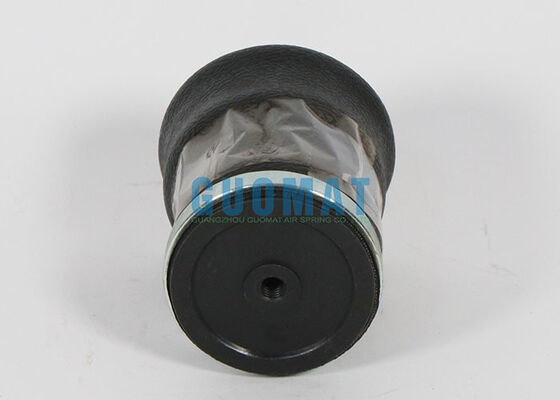

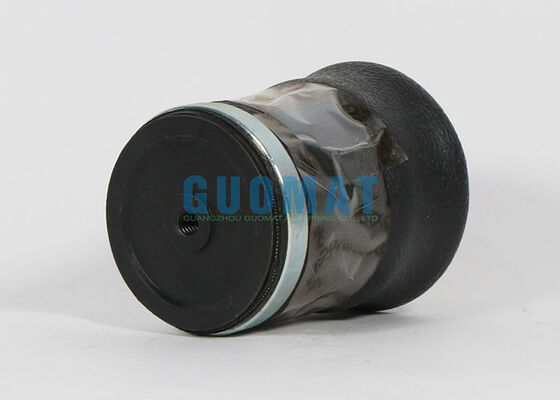

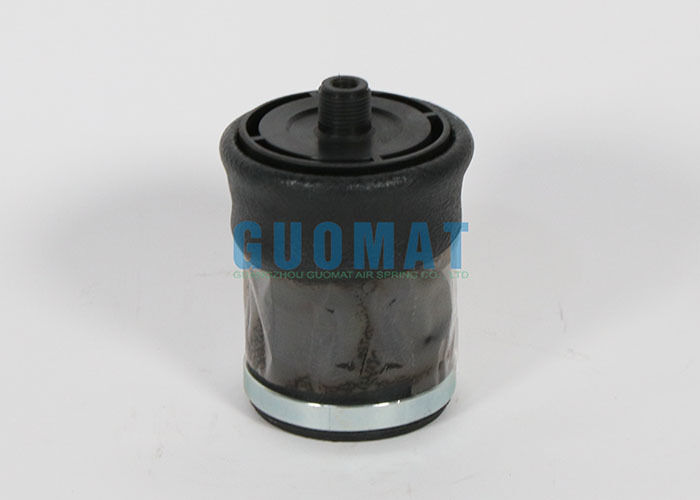

W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	G7086

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$49.9-69.9/pc
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Çalışma Sıcaklığı:	-40°C+70°C	Süspansiyon Tipi:	Kabin İçin Hava Süspansiyonlu Amortisör
OE HAYIR:	W02-358-7086	Yay tipi:	Hava Yayı
Brüt ağırlık:	0,7 lbs.	Renk:	Siyah
Garanti:	1 Yıl	Diğer Ad:	Hava körükleri
Vurgulamak:	Firestone sleeve type air shock absorber , truck air spring with 2.4-7.25 stroke , cab air shock absorber with warranty

W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring

The core of an air spring in a truck cab is to replace steel coil springs with rubber airbags filled with compressed air. Its main function is to significantly absorb road bumps and vibrations, isolate impacts from the chassis, and provide the driver with a smooth, comfortable, "floating" driving environment. A key advantage is its adjustable damping performance; it can adjust the vehicle height and suspension stiffness by changing the air pressure according to road conditions or load variations, thereby reducing driver fatigue during long drives.

Product Specifications

Brand	GUOMAT
Type	Sleeve Type Air Spring
Model No.	G7086
Application	For Truck Cabin
Material	Plastic
Warranty	1 year

Alternative Part Numbers

FIRESTONE W02 358 7086
FIRESTONE W02-358-7086
FIRESTONE W023587086
FIRESTONE WO2 358 7086
FIRESTONE WO2-358-7086
FIRESTONE WO23587086
Cab Drawing Number: 7018 / NBD-10218
LINK MANUFACTURING LTD 1102-0025(FORD)

Technical Data

Top cover diameter	2.84 inches
Top threaded hole	3/8-16
Base piston height	1.48 inches
Base piston width	2.9 inches
Base bolts	3/4-16, 1/8 NPT
Natural outer diameter	2.9 inches
Maximum height	7.25 inches
Minimum height	2.4 inches

GUOMAT G-Reversible Sleeve Cab Air Shock Compatibility

GUOMAT	FIRESTONE	GUOMAT	FIRESTONE
G7086	W02-358-7086	G7046	W02-358-7046
G7079	W02-358-7079	G7001	W02-358-7001
G7002	W02-358-7002	G7150	W02-358-7150
G7201	W02-358-7201	G7132	W02-358-7132
G7100	W02-358-7100	G7041	W02-358-7041
G7059	W02-358-7059	G7058	W02-358-7058
G7076	W02-358-7076	G7054	W02-358-7054
G7098	W02-358-7098	G7040	W02-358-7040
G7049	W02-358-7049	G7055	W02-358-7055

Main Advantages of Installing Air Springs in Truck Cabs

Significantly improved comfort: Effectively filters road bumps and vibrations, significantly reducing driver fatigue during long drives.
Adjustable cab height: By changing the air spring pressure, it can easily accommodate drivers of different sizes or match trailers of different heights.
Protective cab and equipment: Reduces impact and resonance, extending the lifespan of components such as the cab suspension system and dashboard electronics.
Improved driving stability: Better maintains cab posture and reduces body roll when cornering or driving over uneven surfaces.
