2M2A Firestone Sleeve Type Air Bellow W02-M58-3019 Truck Cabin Air Shock Absorber Replacement

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	G3019

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$49.9/pc-$89.9/pc
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	T/T,Western Union,L/C,Paypal,Diğerleri Müzakere
Yetenek temini:	10000 Adet/hafta

İletişim

Detaylı ürün tanımı

Ana Malzeme:	Lastik	Konum:	Ön
Fabrika Garantisi:	1 Yıl	tip:	Hava Basıncı
Kamyon parçaları:	Kabin Parçaları	Kors:	Firestone W02-M58-3019
Marka:	Guomat	Hava deliği:	1/8BSP
Vurgulamak:	Firestone sleeve type air bellow , truck cabin air shock absorber , W02-M58-3019 shock absorber replacement

2M2A Firestone Sleeve Type Air Bellow W02-M58-3019 Truck Cabin Air Shock Absorber Replacement

Product Overview

Item Description	Truck cab air spring
Model Number	G3019
Size	Standard
Material	Rubber
Warranty	12 Months

Alternative Part Numbers

Cross Firestone Style Number: 2M2A
Cross Firestone Number: W02M583019
Cross Firestone Number: W02 M58 3019
Cross Firestone Number: W02-M58-3019
W02-M58-3019: Blind Nut, 1/8BSP, plastic studs

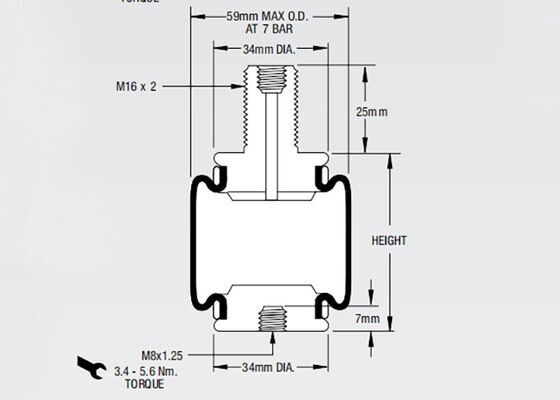

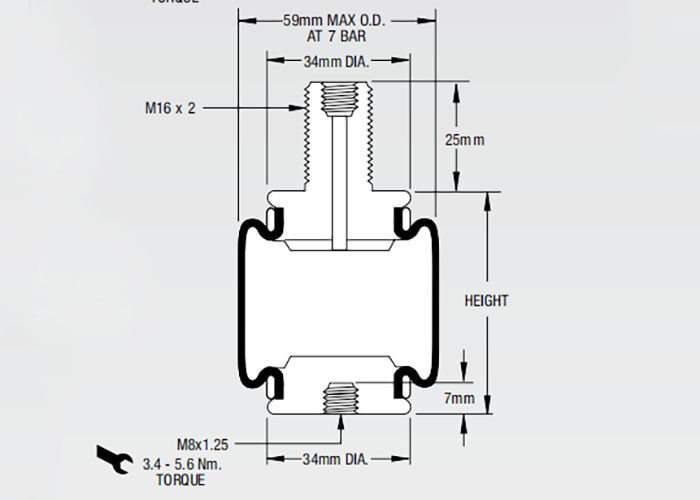

Technical Specifications

Cover plate diameter: 34mm
Cover plate thickness: 7mm
Threaded hole: M8X1.25
Base height: 25mm
Base width: 34mm

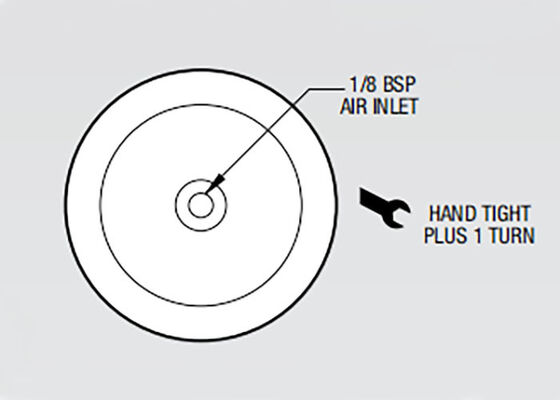

Air vent: 1/8 BSP
Maximum outer diameter: 59mm
Minimum height: 30mm
Maximum height: 60mm

Performance Data

Assembly Height (mm)	Volume @7bar (cu cm)	EFF Area @7bar (cm²)	KN Force
			@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
55	80.30	10.4	0.32	0.41	0.52	0.62	0.73
45	7.46	13.6	0.42	0.55	0.68	0.82	0.95
35	58.99	14.8	0.45	0.60	0.75	0.90	1.04
25	40.56	15.6	0.49	0.64	0.79	0.94	1.09

Product Description

GUOMAT G3019 Truck Cab Air Spring is designed as a direct replacement for Firestone W02-M58-3019, offering reliable performance and stable quality for heavy-duty truck cabin suspension systems. Manufactured with high-strength rubber and reinforced cord layers, the G3019 effectively absorbs vibration and reduces cabin shock, helping improve driver comfort and protect cabin components during long-distance transportation.

With precise dimensions and OEM-compatible installation design, GUOMAT G3019 can completely replace Firestone W02-M58-3019 without modification. It is widely used in truck cab suspension applications and provides excellent durability, air tightness, and long service life under demanding road conditions.
