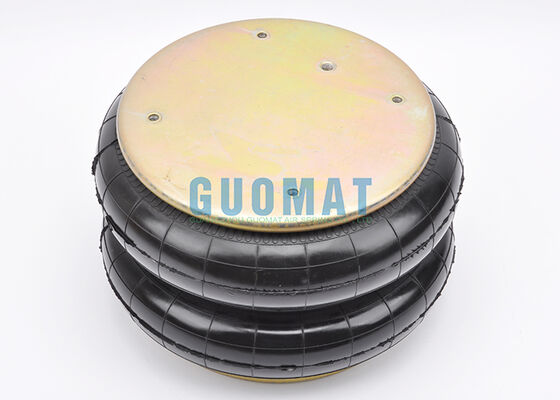

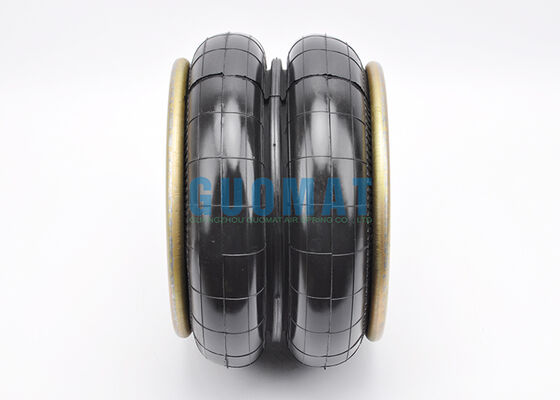

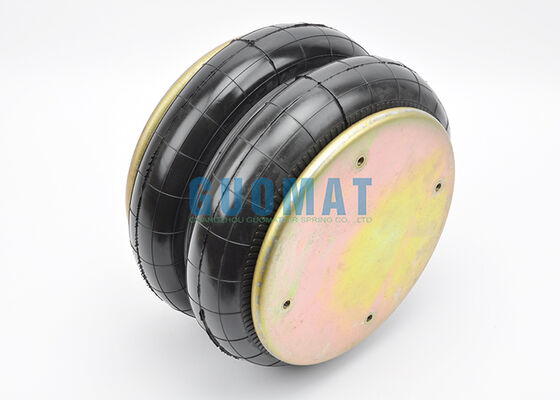

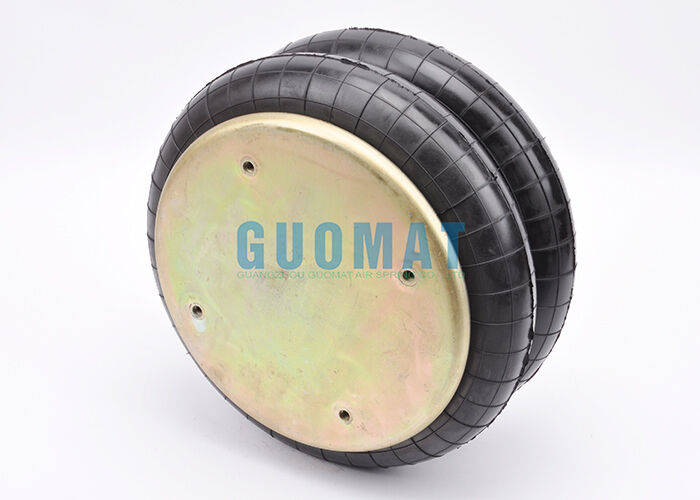

FD 530-22 321 Contitech Cover Plate Air Spring W01-358-7136 Firestone Rubber Air Bags

Ürün ayrıntıları:

Menşe yeri:	Guangzhou, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/Ts16949:2009
Model numarası:	2B53022

Ödeme & teslimat koşulları:

Min sipariş miktarı:	5 adet
Fiyat:	USD59.9-69.9/PC
Ambalaj bilgileri:	Güçlü Karton Kutu veya Müşterilerin Gereksinimi Olarak
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	L/C,T/T,Western Union veya Diğerleri
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Yay Tipi:	Kauçuk Hava Yayı	Yapı:	Çift silindir
Satış sonrası servis:	12 ay	Tip:	Gaz Dolu
Renk:	Siyah	Contitech:	FD530-22 321
Ağırlık:	5.1kg	Felç:	90mm-300mm
Vurgulamak:	Contitech air spring cover plate , Firestone rubber air bags , industrial air spring replacement

FD 530-22 321 Contitech Cover Plate Air Spring W01-358-7136 Firestone Rubber Air Bags

Product Overview

GUOMAT Double Convoluted Air Spring designed for industrial applications with high-strength reinforced rubber construction.

Product Specifications

Brand: GUOMAT
Part Number: 2B53022
Product Type: Double Convoluted Air Spring
Material: High-strength reinforced rubber
Color: Black
Working Medium: Compressed Air
Operating Temperature: -40℃ ~ +70℃
Warranty: 12 Months
Packaging: Carton / Wooden Case
Country of Origin: China

Applications

Industrial suspension systems
Engineering transport vehicles
Lifting platforms
Vibration isolation equipment

Cross-Reference Compatibility

Equivalent Part Numbers

Firestone: W01-358-7136 / W01 358 7136 / W013587136
Contitech: FD530-22 453 / FD 530-22 453
Goodyear: 2B14-356 / 2B14-453
Goodyear Bellows: 578923353 / 578 92 3 353 / 578-92-3-353
Triange: 6329 / 4321

Manufacturer Cross-Reference

Manufacturer	Part Number
Brake & Wheel	M3503
Ridewell	1003587136C
Dayton	3547136
Leland	Sc2014
Navistar	554798C1
Hendrickson Auxillary	QW12AX
Hendrickson Trailer	S1080/C1
Tuthill Technology	1626
Watson & Chalin	AS004
Volvo	3130489
SAF Holland	57007136

Industrial Air Spring Selection Guide

Application Description

This guide assists customers in selecting industrial air springs based on actual working conditions, following a standardized selection process based on three core parameters: Load, Stroke, and Port. This ensures safe, stable, and long-term operation in equipment or vehicle systems.

Applicable Scope

Lifting and conveying platforms
Automated production lines
Equipment vibration damping and isolation systems
Industrial and engineering transport vehicle suspensions

Basic Selection Principles

Air spring selection must simultaneously meet the following three conditions:

Load capacity meets actual load requirements
Effective stroke meets lifting or cushioning requirements
Port specifications match the system's air source and piping

Parameter Mismatch Consequences

Shortened service life
System instability
Premature air spring failure
Increased safety risks

Technical Support Instructions

Contact technical support for the following situations:

Complex working conditions with large load variations
Limited stroke and installation space
Requirement for non-standard interfaces or customized structures

Provide the following information to technical support personnel: total equipment weight, number of support points, required lifting stroke, installation dimensions, and operating environment. An engineer will conduct one-on-one matching and selection.
