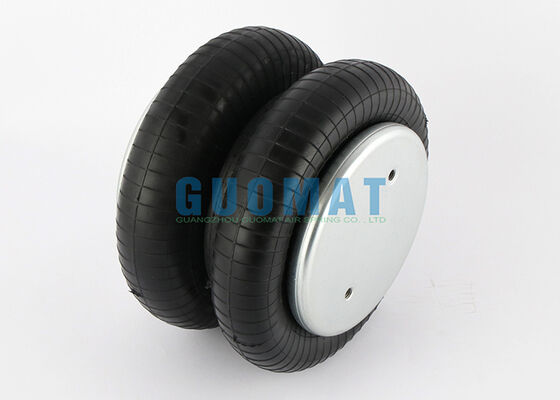

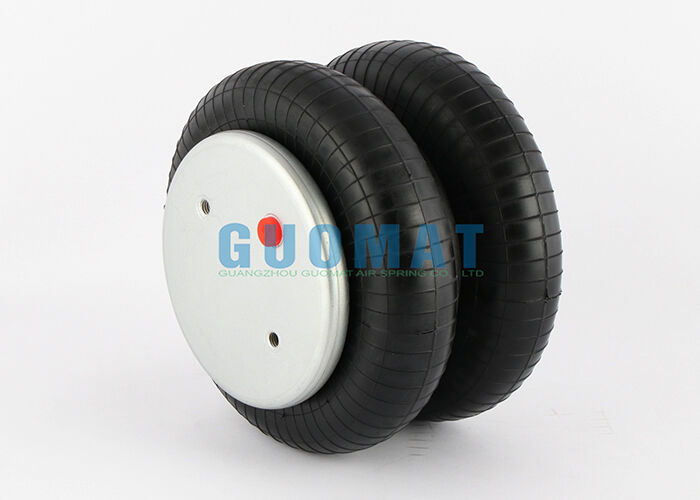

2B9-200/2B9-202/2B9-216 Goodyear Double Convoluted Air Spring 578423202 Air Bellows Replacement

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	2B6910

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	US$59.9-69.9/PC
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Öğe Adı:	Endüstriyel Körük	Körük yapısı:	Çift kıvrımlı tip
Felç:	225mm	Diğer İsimler:	Hava Yayı Titreşimi
İşlev:	Titreşimi azaltın	Operasyon:	Gaz dolu
Öğe:	Endüstriyel Hava Yastığı	Darbe:	75mm-260mm
Vurgulamak:	Goodyear double convoluted air spring , Industrial air spring replacement , 578423202 air bellows

Goodyear Double Convoluted Air Spring 578423202

The GUOMAT 2B6910 is a high-performance double-convoluted industrial air spring designed for shock absorption, vibration isolation, load support, and air suspension systems in industrial equipment.

Featuring a dual-layer rubber bellows structure, it utilizes compressed air to provide flexible, resilient support. This design effectively absorbs shocks and vibrations generated during equipment operation while maintaining stable load-bearing capacity.

Product Specifications

Type:

Double Convoluted Type Air Bags

GUOMAT:

2B6910

Warranty:

1 Year

Material:

Rubber, Steel

Description:

Rubber Air Spring

Size:

OEM Standard

Packaging:

Regular Packing or As Per Customer Requirements

Alternative Part Numbers

Manufacturer	Part Number
Firestone	W01-358-6910
Contitech	FD 200-19 320
Goodyear	2B9-200
Goodyear	2B9-202
Goodyear	2B9-216
Goodyear	578423202
Goodyear	578 42 3 202
Goodyear	578-42-3-202
Triange	6325
Triange	4320
Taurus	KF218-6910

Additional Cross-References: Brake&Wheel: M3501, Dina: A812719, Dina: AZ812719, Dayton: 3546910, Leland: Sc2011, Navistar: 554783C1, Hendrickson: S8768, Hendrickson: 458433, Ridewell: 1003586910C, SAF Holland: 57006910, Trailers De: 133128, Tuthill: 1371, Watson&Chalin: AS-0001, Watson&Chalin: AS-0156G

Product Structural Advantages

Double-convoluted rubber air bellows: The dual-convolution design increases air volume, resulting in smoother elasticity characteristics that adapt to varying load conditions.
Steel top and bottom end caps: High-strength steel end caps enhance installation reliability and ensure long-term load-bearing stability.
Adjustable air pressure: Adjusting the internal air pressure allows for modification of the air spring's stiffness and load-bearing capacity, ensuring optimal equipment performance.
