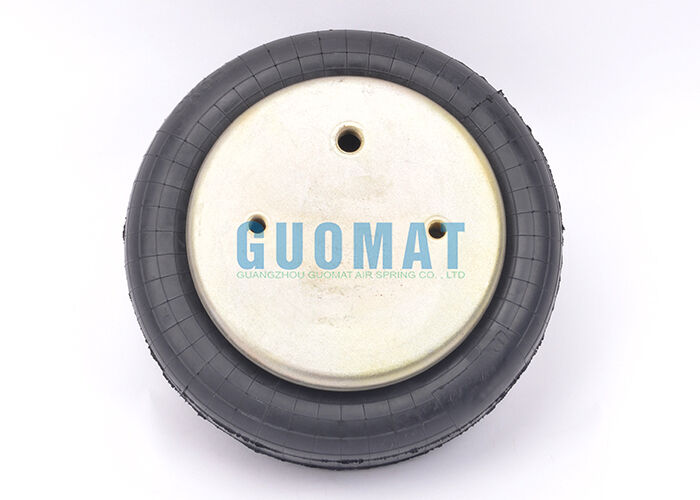

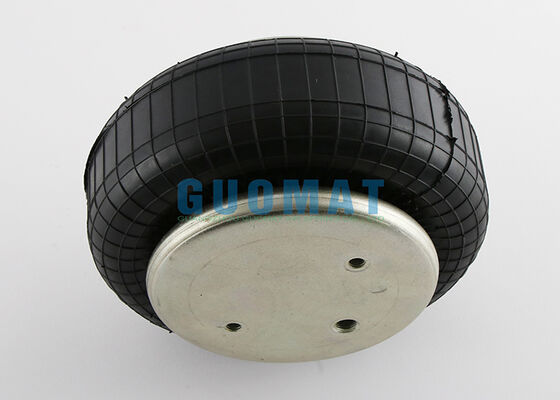

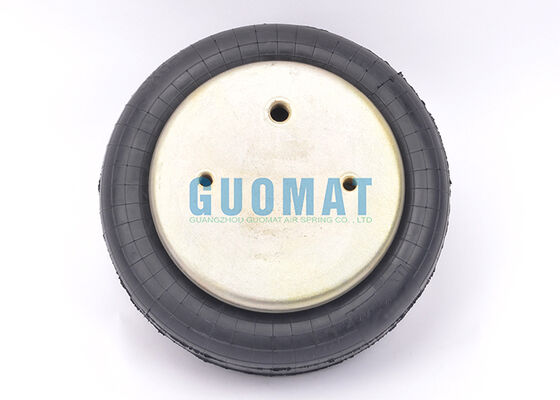

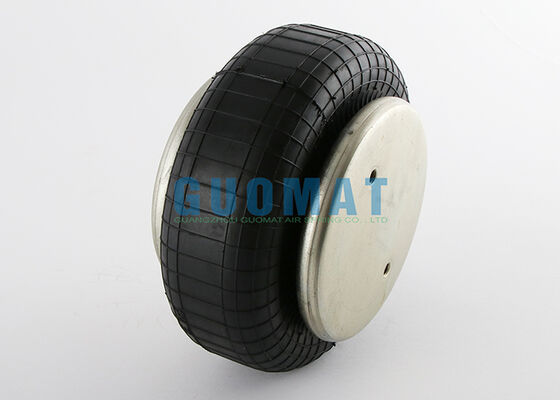

1B9-202 Goodyear Rubber Air Spring 578-91-3-201 Vibration Dampening System With 3/8-16UNC
The GUOMAT 1B9X5 is a high-performance single-convoluted rubber air spring designed for shock absorption, vibration isolation, and impact mitigation systems in industrial equipment. Utilizing compressed air as the elastic medium, it provides flexible support through air pressure variations, effectively reducing vibrations and shocks generated during equipment operation and enhancing operational stability.
The GUOMAT 1B9X5 serves as a replacement for Goodyear 1B9-202 and 578-91-3-201 industrial air springs. It features a fatigue-resistant rubber bellows structure and is equipped with standard 3/8-16UNC mounting threads, allowing for easy installation in various industrial vibration isolation systems.
This model is widely used in industrial machinery, precision equipment, automation systems, and other applications requiring efficient vibration control.
Product Specifications
Item: Single Convoluted Rubber Air Spring
Brand: GUOMAT
Model No.: 1B9X5
Warranty: 1 Year
Material: Rubber and Steel
Alternative Part Numbers
| Manufacturer |
Part Number |
| GOODYEAR |
1B9-202 |
| GOODYEAR |
1B 9-202 |
| GOODYEAR |
578913201 |
| GOODYEAR |
578 91 3 201 |
| GOODYEAR |
578-91-3-201 |
Product Features
High-Efficiency Vibration Isolation
The GUOMAT 1B9X5 air spring absorbs vibration energy generated during equipment operation through the compression and expansion of air, effectively reducing vibration transmission to equipment foundations and surrounding structures. Compared to traditional steel springs, air springs offer a lower natural frequency and superior vibration isolation performance, making them particularly suitable for industrial equipment requiring high operational stability.
Excellent Shock Absorption
The air spring provides flexible cushioning during equipment startup, shutdown, or sudden load fluctuations, mitigating the impact of mechanical shocks on equipment components.
- Industrial shock absorption systems
- Equipment vibration-damping platforms
- Cushioning devices for automated machinery
- Vibration isolation systems for precision instruments
High-Strength Rubber Construction
Manufactured using multi-layer reinforced rubber materials, the product offers excellent:
- Wear resistance
- Fatigue resistance
- Aging resistance
- Sealing performance
It is designed to meet the demands of long-term, continuous operation in industrial environments.
Standard 3/8-16 UNC Mounting Interface
The GUOMAT 1B9X5 features a standard 3/8-16 UNC threaded mounting interface, facilitating easy installation and replacement, and allowing for direct compatibility with existing industrial air spring systems.
