FS70-7 Contitech Rubber Air Bags G1/4 Air Fitting Vibration Isolation Air Spring

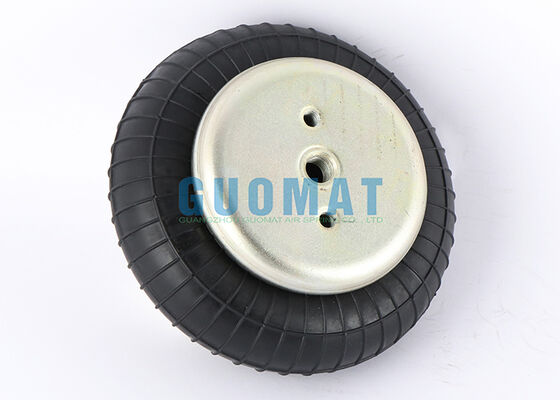

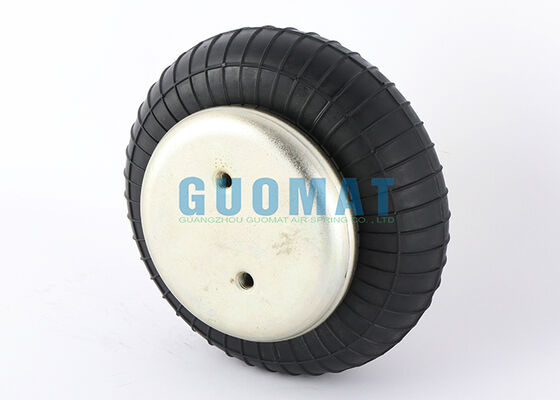

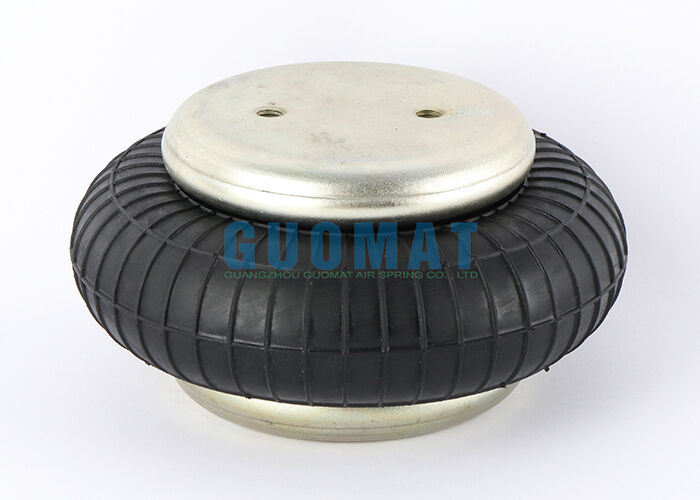

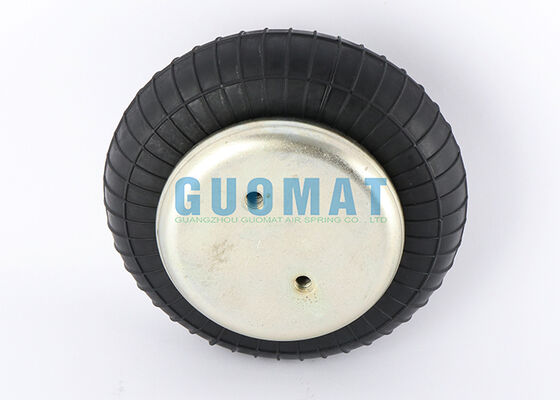

GUOMAT 1B7070 industrial air spring is a single convoluted rubber air bellow designed for vibration isolation, shock absorption, and pneumatic support applications. It serves as a direct replacement for Contitech FS70-7, featuring a durable rubber bellows structure with G1/4 air fitting connection.
Product Specifications
Brand: GUOMAT
Model Number: 1B7070
Material: Rubber and Steel
Warranty: 1 Year
Cross-Reference Part Numbers
Contitech FS70-7
Contitech FS 70-7
Goodyear 1B6-530
Goodyear 1B 6-530
Phoenix SP1B05
Phoenix SP 1B05
Phoenix SP 1B 05
B-osch 822419002
Festo EB-165-65
Weforma WBE 200-E1
Technical Data
Cover plate diameter: 105mm
Air port: G1/4
Threaded hole: M8 x 1.25
Center-to-center distance between threaded holes: 44.5mm
Outer diameter: 153mm
| Height H (mm) |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
8 bar |
VoI.V(I) |
| 100 |
2.23 |
3.09 |
3.96 |
4.82 |
5.74 |
6.58 |
1 |
| 90 |
2.66 |
3.61 |
4.57 |
5.55 |
6.54 |
7.5 |
0.9 |
| 80 |
3.05 |
4.06 |
5.12 |
6.17 |
7.25 |
8.28 |
0.8 |
| 70 |
3.38 |
4.45 |
5.59 |
6.7 |
7.87 |
8.95 |
0.69 |
| 60 |
3.63 |
4.8 |
6 |
7.19 |
8.4 |
9.51 |
0.57 |
Industrial Air Spring - Versatile Damping & Lifting Solution
Our industrial air springs are widely applied in diverse equipment and industries, including paper-making machinery, vehicle inspection systems, mechanical grippers, vibrating tables, and various industrial automation platforms. They serve as critical components to significantly enhance operational efficiency, workplace safety, and overall equipment service life.
Functionally, our air springs deliver superior performance in vibration damping, load lifting, height adjustment, and active support, ensuring stable and precise equipment operation even under demanding conditions. By effectively absorbing shocks and isolating vibrations, they protect sensitive mechanical parts from premature wear while helping reduce manufacturing costs and maximize economic returns.
Key Features & Advantages
- Cost-Effective & User-Friendly - Competitive pricing and intuitive installation for wide industrial application spectrum
- Extended Service Life & Maintenance-Free - High-grade elastomeric materials deliver exceptional durability with zero lubrication requirements
- High Flexibility & Load Capacity - Supports flexible expansion and contraction with robust construction for strong load-bearing capability
- Frictionless Operation with Soft Medium - Air-based operation ensures smooth, quiet performance with progressive spring characteristics
- Compact Design - Simple structure facilitates seamless integration into existing equipment designs
Whether upgrading existing production lines or developing new automated solutions, our industrial air springs offer reliable, high-performance, and economically sound engineering solutions.
