713N Contitech Heavy Duty Bus Air Spring 492mm Height Rubber Air Suspension Bag

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	713n

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	US$19.9-29.9/PC
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	D/A,L/C,D/P,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Öğe Adı:	Otobüs Hava Yayı	Yay Malzemesi:	Lastik
Adı yazın:	Hava Şok Emici Yay	Teslimat:	3 ~ 7 Gün
Yay tipi:	Hava Dolu	Contitech:	713n
Renk:	Siyah	Stil:	Yuvarlanan Lob Tipi
Vurgulamak:	Contitech bus air spring 492mm height , heavy duty rubber air suspension bag , bus air spring with warranty

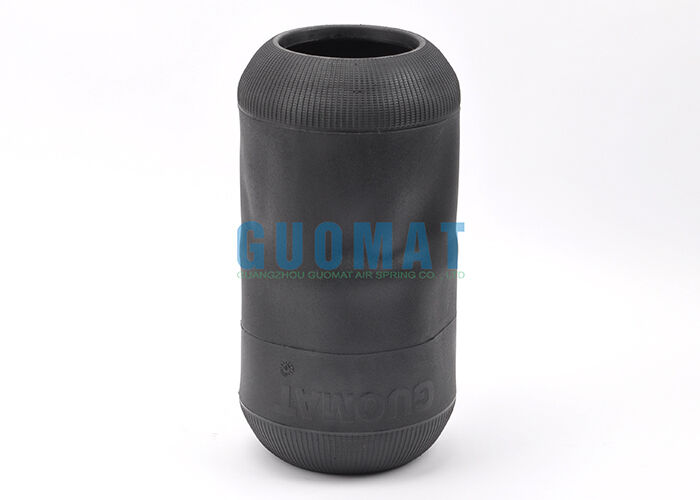

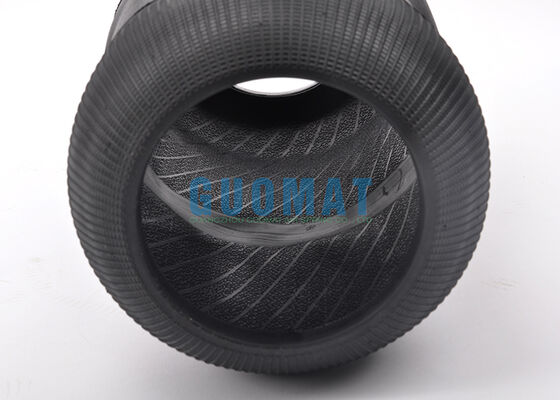

713N Contitech Heavy Duty Bus Air Spring 492mm Height Rubber Air Suspension Bag

GUOMAT NO.713N is a high-quality bus air spring / air suspension bag designed for heavy-duty commercial vehicles, buses, and coaches. This air spring is a replacement for Contitech 713N, providing reliable suspension performance, excellent vibration absorption, and improved passenger comfort.

The 713N bus air spring uses a durable rubber air bellow structure combined with steel components, allowing it to withstand frequent loading, road vibration, and long-distance operation. With a 492mm design height, this air suspension component helps maintain stable vehicle height and provides smooth driving performance for city buses, intercity buses, and heavy-duty passenger vehicles.

Compared with traditional mechanical springs, air suspension systems equipped with air springs can better isolate road shocks, reduce vibration transmission, and improve driving stability. GUOMAT supplies replacement air springs with consistent dimensions and dependable quality for aftermarket maintenance and fleet repair.

Compatible Part Numbers

CONTITECH: 713N
CONTITECH: 713 N
V-OLVO: 1622116
V-OLVO: 679169

Technical Specifications

Specification	Value
Weight	1.8KG
Design Height	492mm
Outer Diameter	240mm
Opening Diameter	130.8mm
Measurement D Max	290mm
Space Required	325mm
Loading Capacity at 0.3bar	1.2kN
Loading Capacity at 5.0bar	25.0kN

Product Advantages

Durable Rubber Construction: Made with high-quality rubber material, the air bellow provides excellent elasticity, wear resistance, and resistance against road vibration.
Stable Suspension Performance: The air spring maintains proper vehicle height and supports smooth operation under different driving conditions.
Improved Passenger Comfort: By absorbing road impacts and reducing vibration, the 713N air spring helps create a more comfortable riding experience.
Reliable Replacement Solution: GUOMAT 713N is manufactured according to replacement specifications, making it an ideal choice for bus repair shops, distributors, and fleet maintenance.

Packaging & Delivery

Packaging
