6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: GUOMAT
Sertifika: ISO/TS16949:2009
Model numarası: 2b6x2p
Ödeme & teslimat koşulları:
Min sipariş miktarı: 6 adet
Fiyat: US$129.9-159.9/PC
Ambalaj bilgileri: Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi: 3-7 iş günü
Ödeme koşulları: Western Union,T/T,D/P,D/A,L/C
Yetenek temini: 1000 adet/hafta
İletişim
Detaylı ürün tanımı
İsim: Kauçuk Hava Yayı evrişim: Çift
OEM: Kabul edilebilir Garanti: 12 Ay Garanti
Origialin'in Yeri: Guangdong, Çin Taşıma Paketi: karton
Körük Sayısı: 6''X2 Contitech: W01-R58-4070
Vurgulamak:

Firestone Rubber Air Spring 6x2

,

W01R584070 Air Spring Shock Absorption

,

FD 76-14 DI Contitech Equipment Air Spring

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
The 6" x 2 Firestone W01R584070 rubber air spring is a high-performance double convoluted industrial air bellow designed for vibration isolation, load support, and shock absorption in industrial machinery and suspension systems.
The GUOMAT replacement model 2B6X2P is fully compatible with leading OEM part numbers such as Firestone W01-R58-4070, Contitech FD 76-14 DI, and Norgren PM/31062, making it a reliable and cost-effective aftermarket solution for a wide range of equipment applications.
OEM Compatibility
  • Continental ContiTech: FD 76-14 1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2
  • Continental ContiTech: FD 76-14 DI G1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2 CR
  • Continental ContiTech: FD 76-14 DI CR G1/2
  • Continental ContiTech: FD 76-14 DI CR /FD76-14DICR /FD7614DICR
  • Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
  • Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
  • Firestone Style: 6"x2
  • Dunlop FR: 6"x2 SP1646 (COMPOSITE)
  • Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
  • Dunlop UK (Pneuride): A 3 1330 02 01/A313300201
  • Norgren: PM/31062/ PM 31062/PM31062
  • Nominal 0 (inch) x convolutions: 6" x 2/6"x2/6x2
Technical Specifications
Cover plate diameter: 152.5 mm
Threaded holes: M8
Center-to-center distance between threaded holes: 127 mm
Maximum outer diameter: 178 mm
Maximum height: 195 mm
Minimum height: 80 mm
Pressure vs Height Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar VoI.V(cm³)
75 566 764 942 1139 1318 1507 317
105 493 665 807 967 1133 1282 780
130 406 548 665 800 936 1062 1098
155 314 419 517 616 727 824 1329
195 111 142 191 234 265 310 1549
Applications
  • Industrial machinery vibration isolation
  • Press machines and die cushion systems
  • Conveyor systems and automation equipment
  • Light truck and trailer suspension systems
  • Cab suspension systems
  • Industrial shock absorption platforms

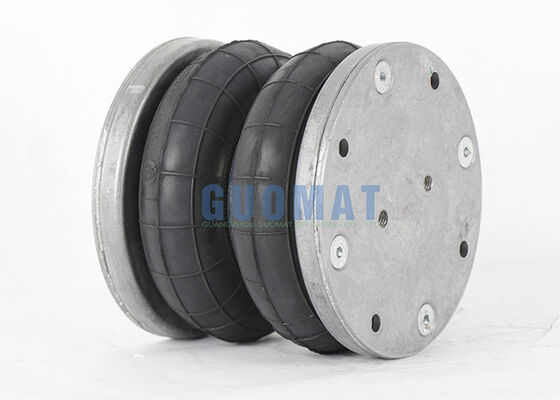

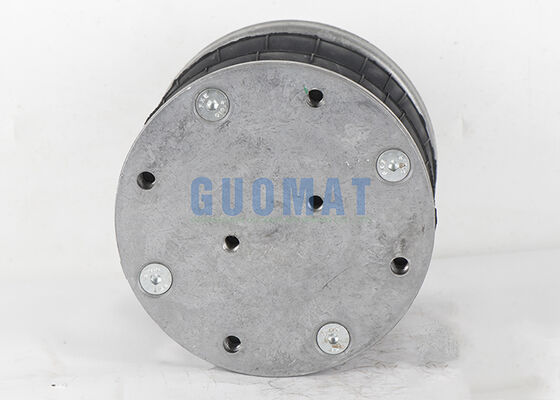

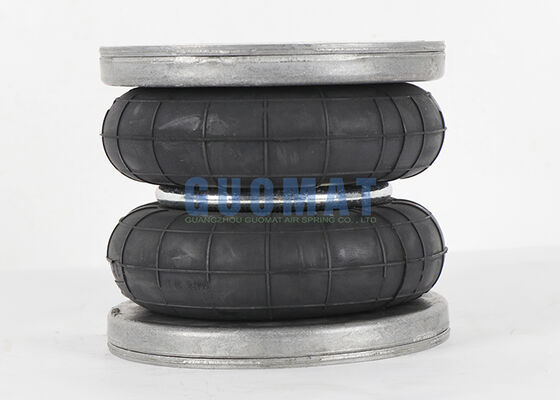

6x2 Firestone W01R584070 Rubber Air Spring - Industrial shock absorption component
