8" x 1 W01R584054 Firestone Air Bags FS 138-8 DS Contitech Industrial Pneumatic Spring

8" x 1 W01R584054 Firestone Air Bags FS 138-8 DS Contitech Industrial Pneumatic Spring

8" x 1 W01R584054 Firestone Air Bags FS 138-8 DS Contitech Industrial Pneumatic Spring
8
8" x 1 W01R584054 Firestone Air Bags FS 138-8 DS Contitech Industrial Pneumatic Spring
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: GUOMAT
Sertifika: ISO/TS16949:2009
Model numarası: 1B8X1T
Ödeme & teslimat koşulları:
Min sipariş miktarı: 6 adet
Fiyat: US$119.9-159.9/PC
Ambalaj bilgileri: Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi: 3-7 iş günü
Ödeme koşulları: L/C,D/A,D/P,T/T,Western Union
Yetenek temini: 1000 adet/hafta
İletişim
Detaylı ürün tanımı
İsim: Kauçuk Hava Yayı GTİP Kodu: 8708809000
çapraz numara: Contitech FS 138-8 DS Taşıma Paketi: KARTONLAR
Hava Yay Tipi: Tek kıvrımlı Durum: Yepyeni
Hava Bağlantısı: 1/4nptf Yapıldığı Yer: Guangdong Çin
Vurgulamak:

Firestone air bags industrial pneumatic spring

,

W01R584054 Firestone air spring

,

8 inch Contitech industrial air spring

8" x 1 W01R584054 Firestone Air Bags FS 138-8 DS Contitech Industrial Pneumatic Spring

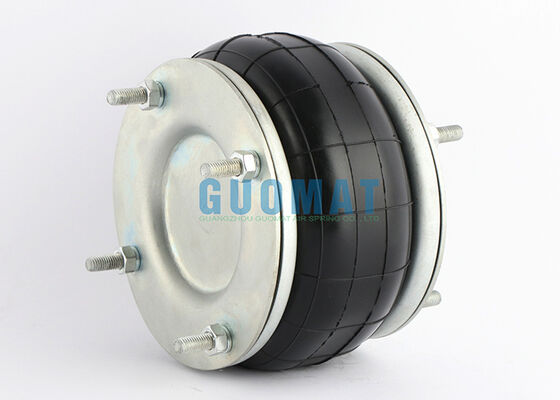

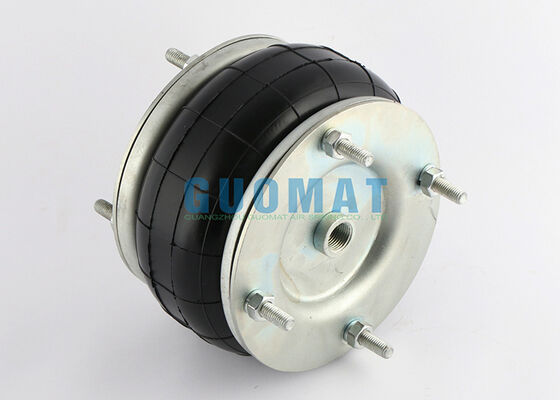

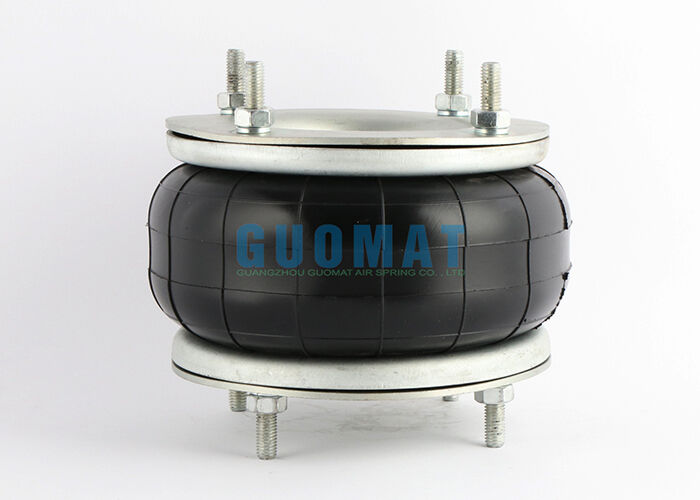

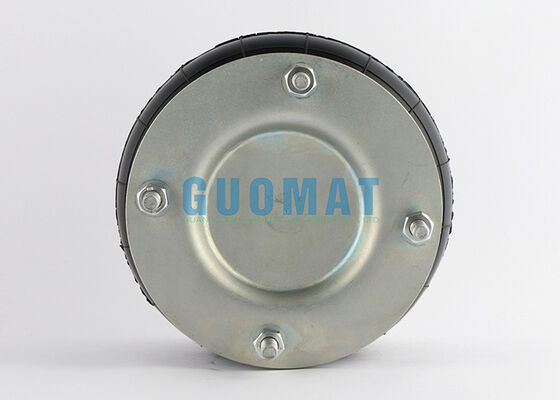

The GUOMAT 1B8X1T is an air spring equipped with a flange, designed to connect to machinery via threaded studs. It serves as a direct replacement for the Firestone W01R584054, offering high performance, competitive pricing, and short lead times.
Product Specifications
  • Type: Convoluted Type Air Spring
  • Brand: GUOMAT
  • Model: 1B8X1T
  • Warranty: 12 Months
  • Material: Rubber and Steel
  • Convolutions: 1
Cross-Reference Part Numbers
ContiTech: FS 138-8 DS 66507, FS 138-8 1/2 M10, FS 138-8 G1/2 M10, FS 138-8 DS G1/2, FS 138-8 DS G1/2 M10, FS 138-8 DS/FS138-8DS/FS1388DS
ContiTech Bellow: FS 138-8/FS138-8/FS1388
Firestone No.: W01-R58-4054/W01 R58 4054/W01R584054
Firestone Style: 8" x1/8"x1/8x1
Dunlop FR: 8"x1 SP1537
Dunlop UK (Pneuride): PNP 30550 0110/PNP305500110
Norgren: M/31081/M 31081/M31081
Nominal 0 (inch) x convolutions: 8" x1/8"x1/8x1
Parker: 8"x1 9109014N
Technical Data
  • Cover plate diameter: 184 mm
  • Bolts: M10
  • Center-to-center distance between bolts: 155.5 mm
  • Outer diameter: 230 mm
  • Maximum height: 130 mm
  • Minimum height: 50 mm
Pressure vs Height Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar Vol. V(cm³)
50 915 1243 1502 1820 2098 2386 752
60 855 1134 1392 1681 1939 22097 1037
80 696 915 1154 1372 1591 1812 1541
100 517 686 855 1034 1193 1362 1968
125 318 418 527 656 736 851 2390
Why Choose GUOMAT?
Professional industrial air spring manufacturer
OEM & ODM services available
Multiple international brand replacements
Premium natural rubber materials
Strict quality inspection
Competitive factory pricing
Fast worldwide delivery
Experienced engineering support
Responsive after-sales service
12-Month Product Warranty
GUOMAT 1B8X1T Industrial Air Spring - 8 inch x 1 convolution pneumatic spring with flange mounting
