12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	3b12x3t

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	US$169.9-199.9/PC
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

İsim:	Kauçuk Hava Yayı	Sertifika:	ISO TS15949
Uyumluluk:	Evrensel	Sıcaklık:	-40°C+70°C
Malzeme:	Kauçuk ve Çelik	Körük No.:	12''X3
Kıvrımlar:	3	Ateş taşı:	W01R584062
Vurgulamak:	12 inch triple convoluted air spring , Firestone suspension air isolator , W01-R58-4062 air spring bellow

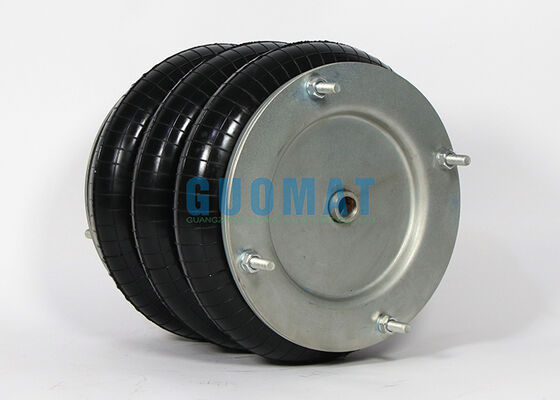

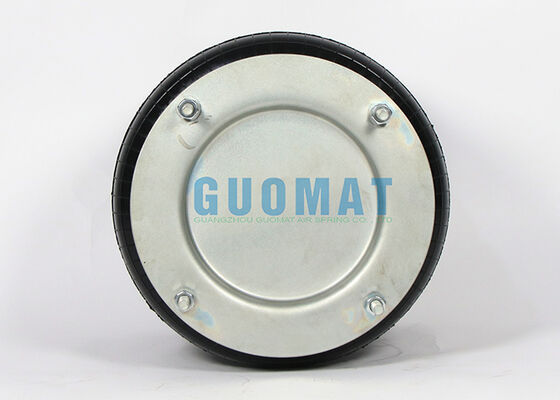

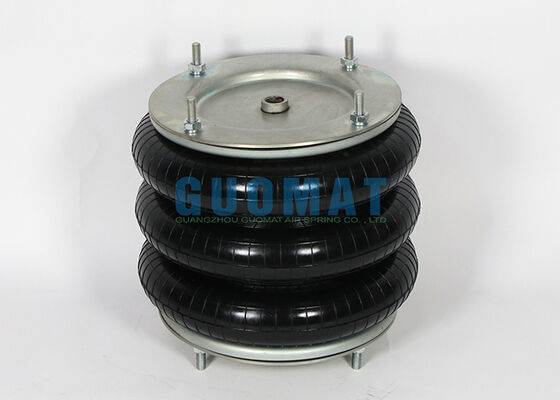

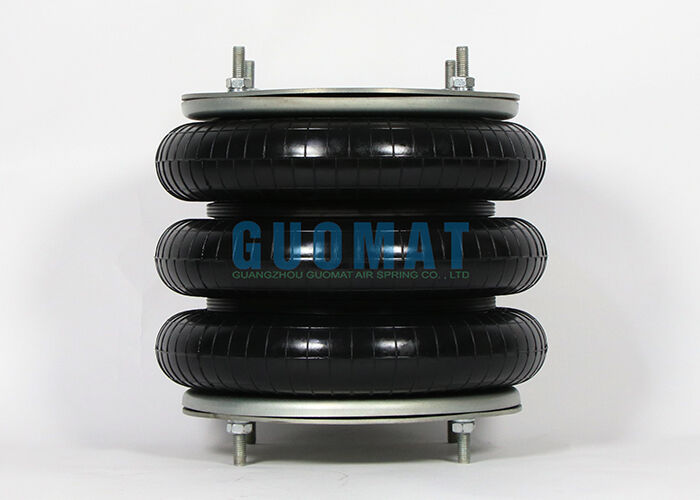

12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator

GUOMAT 3B12X3T is a heavy-duty triple convoluted rubber air spring designed as a direct replacement for Firestone W01-R58-4062 air spring bellows. Manufactured from premium natural rubber, high-strength reinforced cord fabric, and durable steel components, this air spring provides exceptional load-bearing capacity, vibration isolation, and shock absorption for industrial equipment and suspension systems.

The triple convoluted design offers a greater working stroke and higher vertical travel than single or double convoluted air springs, making it an ideal choice for applications requiring increased flexibility, stable load support, and excellent vibration control. The air spring automatically adjusts to varying loads while maintaining consistent operating height, helping improve equipment performance and reduce mechanical stress.

Product Specifications

Type: Suspension Air Spring

Model: 3B12X3T

Cross-Reference Part Numbers

Firestone: W01-R58-4062 / WO1-R58-4062

Firestone: W01 R58 4062 / WO1 R58 4062

Firestone: W01R584062 / WO1R584062

Contitech: FT412-32DS / FT 412-32DS / FT 412-32 DS

Dunlop: SP1542 / SP 1542

Norgren: M/31123 / M 31123 / M 31123

Parker: 9109051

Technical Specifications

Cover plate diameter: 260mm

Air vent: G1/2

Threaded hole: M8

Number of threaded holes: 4

Center distance between threaded holes: 232mm

Maximum outer diameter: 330mm

Minimum height: 100mm

Maximum height: 430mm

Pressure and Height Performance Data

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
100	2165	2891	3610	4332	5052	5773	7948
150	1932	2578	3225	3868	4509	5152	11318
200	1704	2277	2844	3413	3993	4561	14685
250	1462	1951	2439	2936	3425	3921	17360
300	1193	1595	1998	2397	2800	3202	18982
350	924	1231	1539	1851	2159	2469	20046
400	648	862	1081	1298	1513	1731	20832
430	483	645	805	967	1126	1286	21310
