14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1B14.5X1T

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	US$159.9-199.9/PC
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

İsim:	Kauçuk Hava Yayı	Tanım:	havalı süspansiyon yayı
Hava Bağlantı Boyutu:	G1/2	Hava Yayı Tipi:	Tek Silindirli Tip
Körük Sayısı:	14 1/2''X1	Contitech:	FS 614-13 DS
Felç:	50mm-175mm	Sürgü:	M10
Vurgulamak:	14 1/2 inch double convoluted air spring , Contitech suspension air bags , FS 614-13 DS air spring

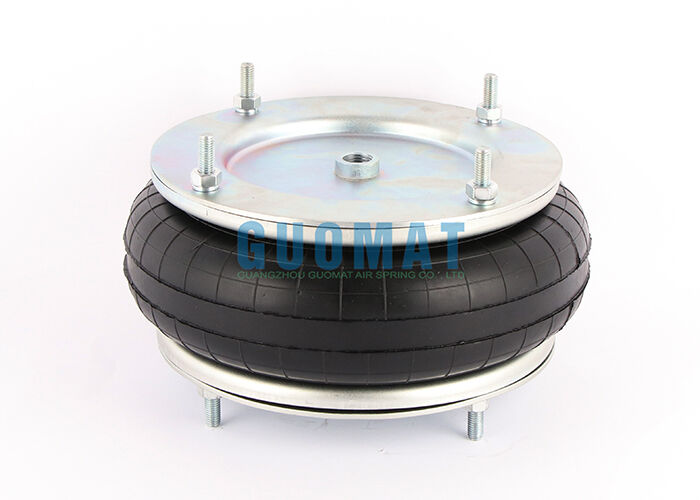

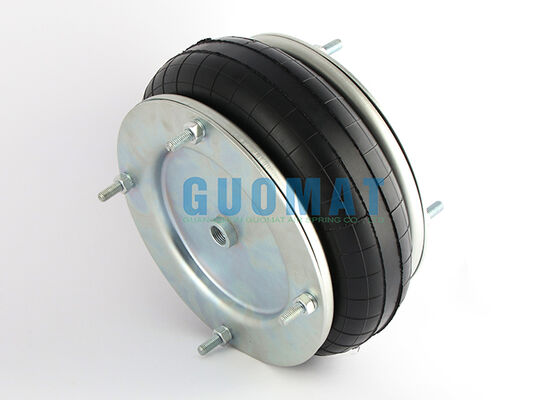

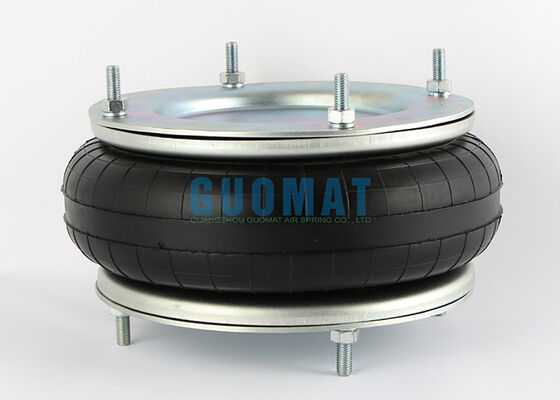

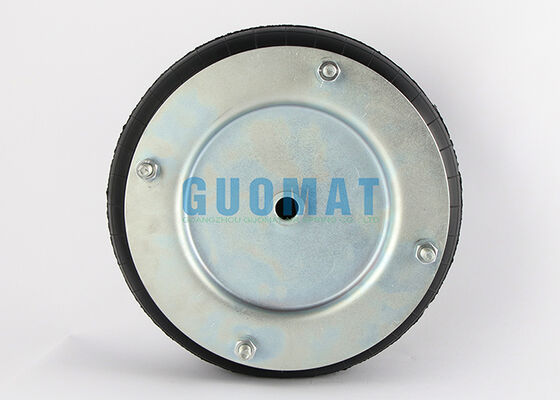

14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS

GUOMAT 2B14.5X2T is a premium double convoluted rubber air spring designed as a direct replacement for ContiTech FS 614-13 DS suspension air bags. Manufactured with high-quality natural rubber, reinforced cord fabric, and durable steel components, this air spring delivers outstanding load support, vibration isolation, and shock absorption for demanding industrial and suspension applications.

The double convoluted design provides a larger effective working stroke and higher load capacity than single convoluted air springs, making it ideal for equipment requiring superior flexibility and stable performance. The air spring automatically adjusts to varying load conditions, helping reduce vibration, minimize mechanical stress, and improve overall equipment efficiency.

Compatible Part Numbers

Continental ContiTech:

FS 614-13 1/2 M10 • Order No.: 68045 • FS 614-13 DS G1/2

Firestone:

WO1-R58-4063 / W01-R58-4063 • WO1 R58 4063 / W01 R58 4063 • WO1R584063 / W01R584063 • Style: 14 1/2x1

Dunlop:

FR: SP1543 • FR Bellows: 1412" x 1 • UK (Pneuride): PNP 3041401 19 • UK Bellows: 141/"x1

Other Manufacturers:

IMI Norgren: M/31141 • Oria: 14 1/2x1 • Parker: 9109064 • Parker Type: 14-1/2x 1 • Pneumatis: DB1417 • Pneumatis Bellows: 1412" x1 • Sopra: DB-1417 • Sopra Type: 141"x1 • Trelleborg Rubena: 14 1/2" x 1

Technical Specifications

Cover plate diameter: 310mm

Bolts: M10

Center distance between bolts: 282.5mm

Maximum outer diameter: 400mm

Maximum height: 175mm

Minimum height: 50mm

Pressure and Volume Specifications

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
50	2826	3759	4785	5847	6771	7856	883
75	2673	3602	4581	5447	6266	7181	3411
100	2354	3189	3902	4721	5449	6223	5911
125	1902	2523	3143	3748	4277	4841	8087
150	1409	1830	2258	2679	3166	3534	9535
165	1122	1420	1724	2018	2492	2736	10331
