16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	2B16X2T

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	pazarlık edilebilir
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Çalışma Sıcaklığı:	-40°C+70°C	Modeli:	Kıvrımlı Hava Yastıkları
Çapraz Referans:	Contitech FD816-30	Garanti Özel:	1 Yıl
Kullanım:	Endüstriyel	Evrişim sayısı:	Çift
Körük Numarası:	16x2	Ateş taşı:	W01R584067
Vurgulamak:	Firestone air spring double convoluted , 16 inch rubber air spring , air bellow for tooling equipment

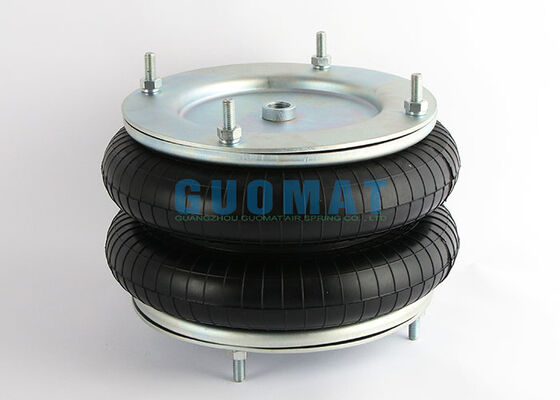

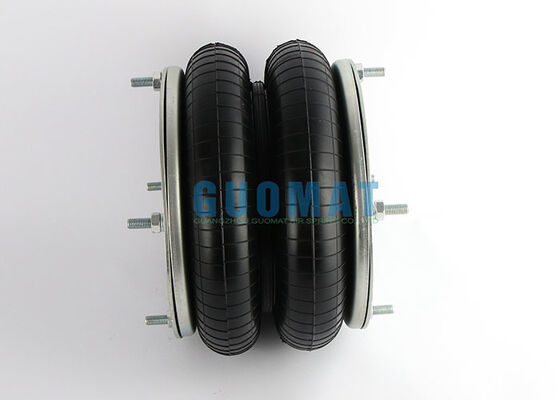

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring

Designed for tooling equipment, this double convoluted rubber air spring provides reliable performance and durability.

Product Overview

The GUOMAT 2B16X2T air spring is manufactured with high-quality materials and superior craftsmanship, serving as a complete replacement for the Firestone W01R584067.

This product uses high-toughness natural/synthetic composite rubber and imported cord reinforcement materials, adhering to ISO international quality standards. Fully compatible with the original Firestone W01R584067 in interface dimensions, working stroke, and rated load capacity, making it ideal for bus suspensions, commercial vehicle cab vibration damping, and industrial equipment vibration isolation.

Product Specifications

Product Name	Flange Air Spring
Brand	GUOMAT
Model No.	2B16x2T
Convolutions	2
Warranty	1 Year
Material	Rubber and Steel

Compatible OEM Numbers

Firestone Style: 16''X2, 16X2
Firestone Number: W01R584067, W01 R58 4067, W01-R58-4067
Dunlop Number: SP1557
Contitech Number: FD816-30DS, FD 816-30DS, FD 816-30 DS
Norgrem Number: M/31162, M 31162, M31162
Parker Number: 9109171

Technical Specifications

Air port inlet	G1/2
Rec/Max pressure	5,5/8 bar
Force(N)@0 bar to H(mm)	120(80)
Weight	9.70KG
Max. outer diameter	440mm
Min. height	75mm
Max. height	325mm
Recommended height	300mm
