W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring

W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring

  • W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring
  • W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring
W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring
Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: GUOMAT
Sertifika: ISO/TS16949:2009
Model numarası: 2H520217
Ödeme & teslimat koşulları:
Min sipariş miktarı: 6 adet
Fiyat: $159.9/pc-$199.9/pc
Ambalaj bilgileri: Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi: 2-8 iş günü
Ödeme koşulları: T/T, Western Union, L/C
Yetenek temini: 1000 adet/hafta
İletişim
Detaylı ürün tanımı
Yay Malzemesi: Doğal kauçuk Garanti: 12 Ay Garanti
Renk: Siyah Paket: Kahverengi Karton Kutu
Model Adı: Kauçuk Hava Yayı Bağlantı Yöntemi: Sürgü
Haç Hayır.: Ateş taşı W01-M58-7532 Kıvrımlar: 2
Vurgulamak:

Firestone rubber air spring

,

air bellow with bead ring

,

style 29 air spring

W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring
Product Overview
W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring
Product Specifications
  • Brand: GUOMAT
  • Model: 2H520217
  • Item: Rubber Air Spring
  • Convolutions: 2
  • Warranty: 12 Months
  • Material: Rubber and Steel
Replacement Part Numbers
  • Firestone Style 29
  • Firestone W01-M58-7532 / WO1-M58-7532
  • Firestone W01 M58 7532 / WO1 M58 7532
  • Firestone W01M587532 / WO1M587532
Component Variations
  • W01-M58-7532 / W01 M58 7532 / W01M587532: Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
  • W01-358-7275 / W01 358 7275 / W013587275: Rolled Plate Assembly, 1/2 blind nuts, 3/4BSP
  • W01-358-7902 / W01 358 7902 / W013587902: Rubber bellows only
Technical Specifications
  • Flange diameter: 517mm
  • Bolts: 24 (M-10X1.5)
  • Center distance between bolts: 482mm
  • Rubber bellow maximum outer diameter: 575mm
  • Maximum height: 330mm
  • Minimum height: 84mm
  • Design height: 240mm
Performance Data
Assembly Height (mm) Volume @7BAR (cu cm) EFF Area @7BAR (cm sq) kN Force
@3BAR @4BAR @5BAR @6BAR @7BAR
28053863131737.0350.7264.1178.8292.17
24047704161847.1263.6280.0697.40113.25
20040443181453.2672.7490.77109.45127.00
16032306196257.9578.6198.18118.39137.31
12023824211062.8484.51105.81127.52147.69
8015280225567.7490.95113.48136.38157.84

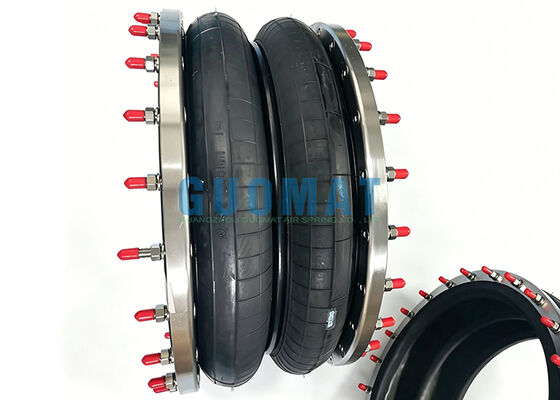

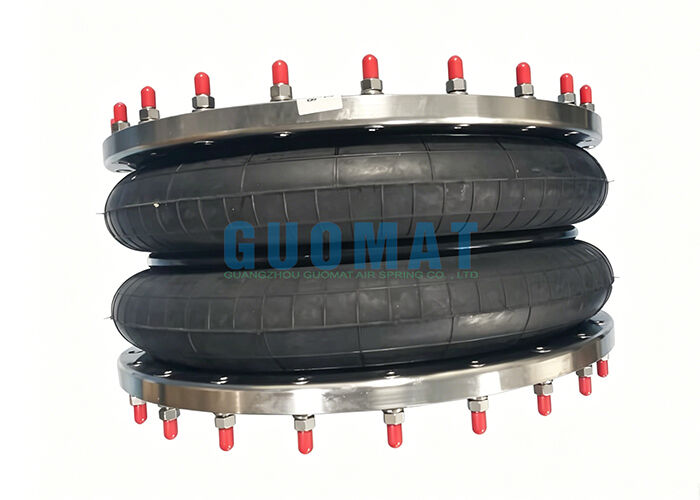

W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring product image
