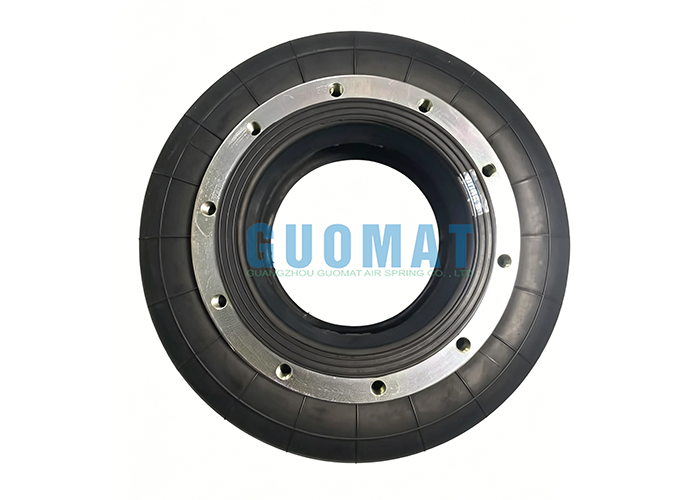

1H7023 Air Spring Replace W01-358-7023 Firestone Style 19 Single Convoluted Air Actuator

Ürün ayrıntıları:

Menşe yeri:	GUANGZHOU, ÇİN
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1H7023

Ödeme & teslimat koşulları:

Min sipariş miktarı:	5 adet
Fiyat:	USD79.9-99.9/PC
Ambalaj bilgileri:	Güçlü Karton Kutu veya Müşterilerin Gereksinimi Olarak
Teslim süresi:	3-7 iş günü
Ödeme koşulları:	L/C,T/T,Western Union veya Diğerleri
Yetenek temini:	1000 Adet/Hafta

İletişim

Detaylı ürün tanımı

Öğe Adı:	Endüstriyel Kauçuk Hava Yastığı	Malzeme:	Kauçuk ve Çelik
OEM:	Evet	Garanti:	12 Ay
Kıvrımlı:	Tek kıvrımlı tip	OEM NO.:	Firestone W01-358-7023
tip:	Flanş Halkalı	Diğer Ad:	Lastik hava mürekkepleri
Vurgulamak:	Firestone style 19 air spring , single convoluted air actuator , W01-358-7023 replacement air spring

1H7023 Air Spring Replace W01-358-7023 Firestone Style 19 Single Convoluted Air Actuator

This industrial air spring provides a direct replacement for Firestone W01-358-7023 and compatible models, offering superior vibration damping and adjustable performance for industrial machinery applications.

Product Specifications

Item Name	Industrial Air Spring
Model No.	1H7023
Brand	GUOMAT
Warranty	12 Months
Type	Flange Air Spring
Service Offered	OEM
Suspension System	Air Spring Suspension
Applications	For Industrial Machine
Material	Imported Natural Rubber
Operation	Gas-filled
Package	Standard Packing Or Customized

Replacement Part Numbers

Firestone W01-358-7023 / W01 358 7023 / W013587023
Firestone Style 19
W01-358-7008 / W01 358 7008 / W013587008 - Blind nuts, 1/4NPT
W01-358-7009 / W01 358 7009 / W013587009 - Blind nuts, 1/4NPT, bumper
W01-358-7011 / W01 358 7011 / W013587011 - Blind nuts, 3/4NPT
W01-358-7012 / W01 358 7012 / W013587012 - Blind nuts, 3/4NPT, bumper
W01-358-7023 / W01 358 7023 / W013587023 - Countersunk Steel bead rings, 15/8 bolts, nuts, washers
W01-358-0134 / W01 358 0134 / W013580134 - Rubber bellows only

Technical Advantages

Compared to traditional metal springs and cylinders, the GUOMAT 1H7023 air spring offers smoother operation, adjustable output force, and superior vibration damping. Users can easily control the working height and load capacity by adjusting the air pressure, thereby improving equipment stability and production efficiency.

Its flexible rubber bellows structure minimizes the transmission of vibration and noise, reduces wear on mechanical parts, and extends the overall service life of the equipment.

The GUOMAT 1H7023 cover plate has a diameter of 250mm, uses 12-M8*1.25 bolts, and has a center distance of 228.5mm between bolts. It has a design height of 110mm and an outer diameter of 301mm.

Performance Data

Assembly Height (in.)	Volume@100PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
5.0	394	780	1690	2640	3730	4870
4.0	327	1300	2610	4060	5500	7050
3.0	244	1580	3280	5000	6720	8440

Why Choose GUOMAT?

GUOMAT specializes in industrial air springs, truck air springs, cabin air springs, and suspension air bags. With strict quality control and extensive manufacturing experience, we provide reliable replacement air springs that meet or exceed OEM performance requirements while offering competitive pricing and dependable global supply.

Contact GUOMAT today for technical support, drawings, pricing, and bulk order inquiries.
