FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows Manufacturer

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	3B53035

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$99.9-119.9/pc
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Ürün adı:	Kabuklu Lastik Hava Yastığı	Malzeme:	Yüksek kaliteli kauçuktan yapılmıştır
Garanti:	1 Yıl	Fiyat durumu:	Fob Çin
Örnek:	Mevcut	Operasyon:	Otomatik mürekkep beslemesi, sabit basınçlı sirkülasyon sistemi
Contitech:	FT530-35	Kıvrımlar:	3
Vurgulamak:	Contitech rubber air spring , G1/4 air fitting pneumatic bellows , industrial air spring with warranty

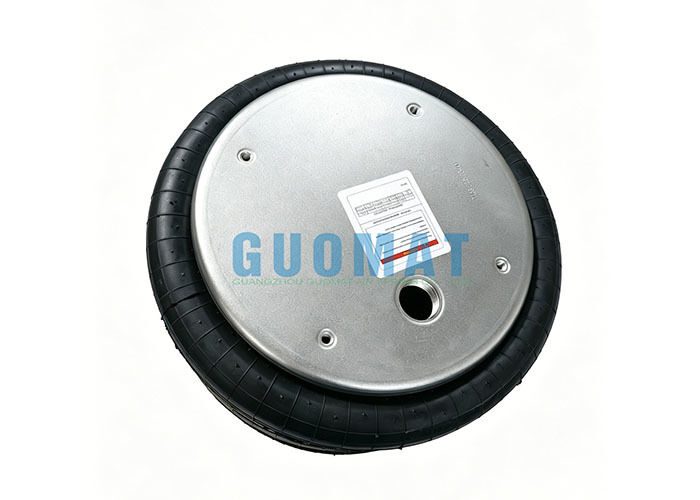

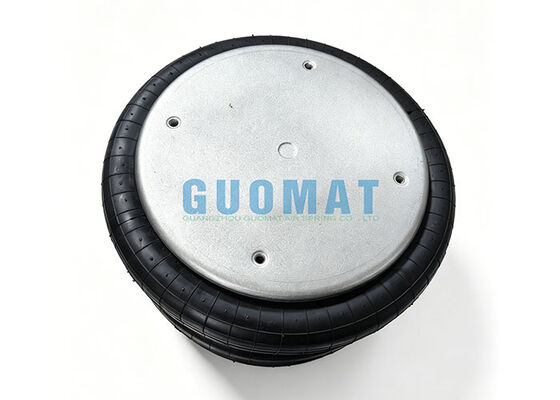

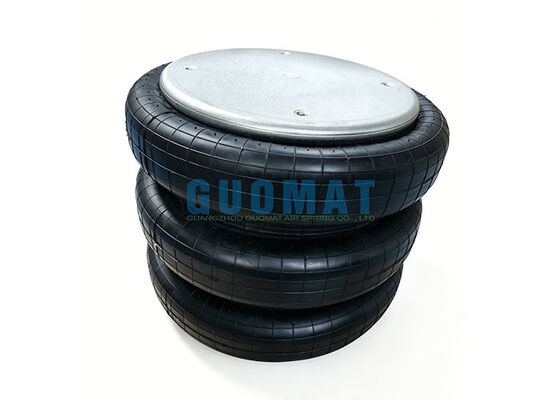

FT 530-35 CI Contitech Rubber Air Spring G1/4 Air Fitting Pneumatic Bellows

The GUOMAT 3B53035 air spring is manufactured from high-quality rubber materials using precision processes, designed specifically for stable pneumatic support and vibration absorption. This product serves as a direct replacement for the Contitech FT530-35, offering superior performance and durability for various industrial applications.

Product Specifications

Brand: GUOMAT

Model: 3B53035

Replacement for: Contitech FT530-35 / FT 530-35

Technical Data

Maximum height: 510mm

Minimum height: 110mm

Cover plate diameter: 287mm

Threaded holes: 4xM8

Center distance between threaded holes: 158.8mm

Maximum outer diameter: 405mm

Air inlet: G1/4 with 79.4mm offset

Pressure vs Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
380	17.7	23.8	30	36.4	42.9	49.1	31
300	21.3	28.4	36.1	43.4	50.7	58	25.4
220	24.3	32.3	40.4	48.5	56.6	64.6	19.4
140	27.3	36.3	45.4	54.5	63.4	72	12.4

Packaging & Shipping

GUOMAT air springs are securely packaged to prevent damage during transit. Custom packaging and shipping arrangements are available upon request.

Customer Benefits

Cost Savings

The GUOMAT 3B53035 offers a cost-effective alternative, saving you money without compromising on quality compared to high-priced OEM parts.

Reliability Assurance

All products undergo rigorous quality control and performance testing to ensure each component meets high standards.

Global Supply

GUOMAT provides high-quality air spring solutions worldwide, with fast delivery support.

If you have any questions or require additional information, please contact our customer service team for assistance.

Product Drawings
