2H630262 GUOMAT Flange Air Bags Replace FD2380-24RS Contitech Double Convoluted Industrial Air Spring Supplier

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	2H630262

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	pazarlık edilebilir
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Yay Malzemesi:	Doğal Kauçuk ve Çelik	diğer isim:	Hava Süspansiyonlu Amortisör
Garanti:	12 ay	paketleme:	nötr ambalaj
Kalite:	-40℉ ila 185℉（-40°C ila 85°C）	Tip:	Flanş Halkalı Çift Katlı Körük
Bağlantı türü:	Flanş	Çalışma Ortamı:	Hava
Vurgulamak:	GUOMAT flange air spring , double convoluted industrial air bag , FD2380-24RS air spring replacement

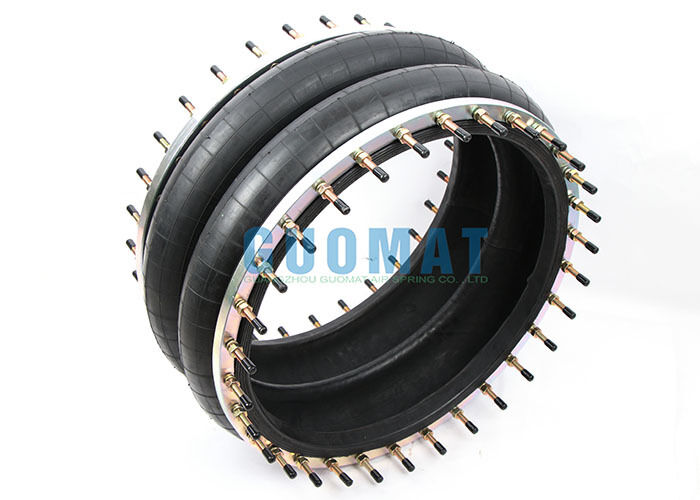

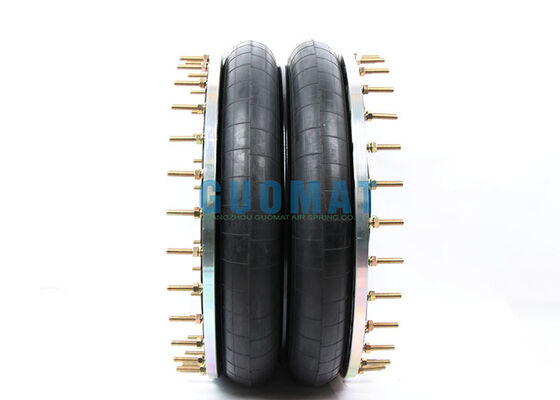

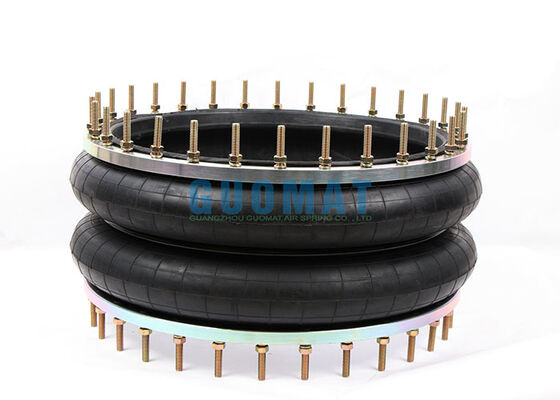

2H630262 GUOMAT Flange Air Bags

The GUOMAT 2H630262 Double Convoluted Air Spring is designed as a reliable replacement for Contitech FD2380-24RS, widely used in industrial vibration isolation systems. Manufactured with high-quality rubber and reinforced steel components, this air bag ensures excellent load capacity, durability, and long service life under demanding working conditions.

Product Specifications

Brand: GUOMAT

Model: 2H630262

Material: Rubber and Steel

Warranty: 1 Year

Application: Industrial Machine

Cross Reference Numbers

Manufacturer: Continental

Part Numbers: 20886342, FD2380-24RS, FD 2380-24RS, FD 2380-24 RS, FD 2380-24 RS UNF

Technical Data

Flange diameter: 23.62"

Bolt: 24pcs X 3/8-24UNF

Center distance between bolts: 21.97"

Max outer diameter: 26.18"

Max height: 12.4"

Min height: 3.4"

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	40	60	80	100	120	Vol V(I)
Force (Load) Ibf	14400	21100	28500	35700	43400	3760
Spring Rate Ibf/in.	3870	5330	6900	8400	10000	-
Natural Frequency f0 (Hz)	1.6	1.6	1.5	1.5	1.5	-

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	40	60	80	100	120	Vol V(I)
Height H(in.) 100	13300	20000	26900	33800	40800	4000
Height H(in.) 90	14500	21800	29200	36700	44200	3600
Height H(in.) 80	15400	23200	31000	39300	46800	3200
Height H(in.) 70	16200	24500	32700	41000	49200	2800
Height H(in.) 60	17000	25500	34000	42600	51200	2400
Height H(in.) 50	17600	26400	35200	44100	52800	2000
