W01-358-5323 Original Firestone Rolling Lobe Air Spring 1T14C-1 Air Bellows Supplier

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1T5323

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$79.9-89.9/pc
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Ürün adı:	havalı süspansiyon yayı	Garanti:	12 ay
Renk:	Siyah	paket:	karton
İşlev:	Şoku Azaltın	Körük Türü:	1T14C-1
OEM numarası:	W01-358-5323	Kalite:	-40℉ ila 185℉（-40°C ila 85°C）
Vurgulamak:	Firestone rolling lobe air spring , Truck air bellows 1T14C-1 , Original Firestone air spring with warranty

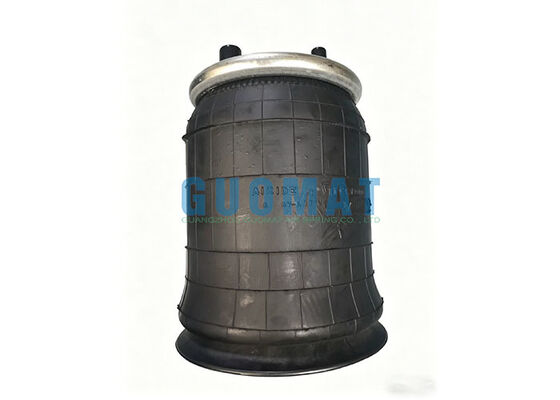

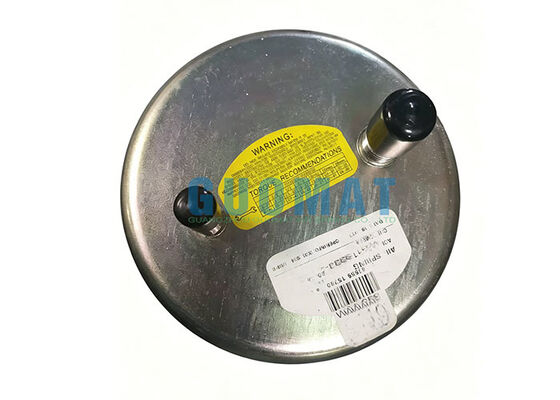

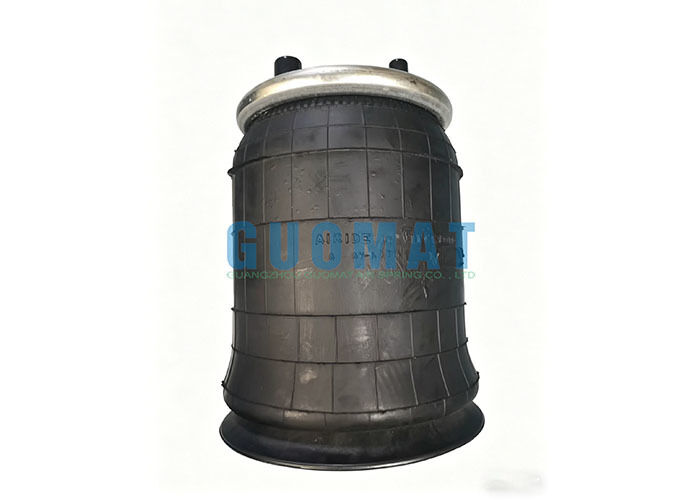

W01-358-5323 Original Firestone Rolling Lobe Air Spring 1T14C-1 Air Bellows

High-quality replacement air spring designed to meet original Firestone specifications for heavy-duty truck applications.

Product Specifications

Parameter	Details
Product Name	Truck Air Spring
Brand	GUOMAT
Model No.	1T5323
Material	Rubber + Steel
OEM Quality	High Quality

Firestone Compatibility

Original Firestone Style: 1T14C-1

Original Firestone Air Spring: W013585323
Original Firestone Air Spring: W01 358 5323
Original Firestone Air Spring: W01-358-5323
Original Firestone Air Spring: WO13585323
Original Firestone Air Spring: WO1 358 5323
Original Firestone Air Spring: WO1-358-5323

Technical Data

Specification	Value
Assembly Weight	6.8 lbs
Design Height	8-9.5 inches
Minimum Jounce Height	5.4 inches
Maximum Rebound Height	13.26 inches
Loading Capacity at 20 psig	616 lbsf
Loading Capacity at 60 psig	1,848 lbsf
Loading Capacity at 90 psig	2,772 lbsf
Natural Frequency	Hz
Maximum Diameter	9.1 inches
Material Type	Natural Rubber

Cross-Reference Compatibility

Firestone Style	Firestone No.	Replaces
1T14C-1	W01-358-5323	Air Ax (Roelofs), Granning 7504, Ridewell, 1003585323C
1T14C-1	W01-358-5328	American Carrier 8003-017
1T14C-1	W01-358-5343	Veco 504035755

Packaging & Shipping

Secure Packaging: Each air spring is individually packed with protective materials and placed in strong export cartons to prevent damage during transit.

Delivery Time: Stock items: 3-7 days | Bulk orders: 7-25 days

Shipping Methods: Express (DHL/FedEx), Air Freight, or Sea Freight available

Trade Terms: EXW / FOB / CIF / DAP supported

Quality Assurance: 100% tested before shipment to ensure reliable performance
