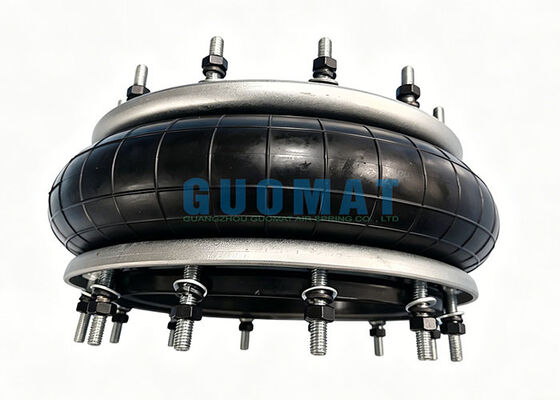

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1H7023

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$159.9-199.9/pc
Ambalaj bilgileri:	Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C,T/T,Western Union
Yetenek temini:	1000 adet/hafta

İletişim

Detaylı ürün tanımı

Ürün adı:	Flanş Hava Yayı	Garanti:	1 Yıl
Malzeme:	Kauçuk + çelik	Operasyon:	Otomatik mürekkep beslemesi, sabit basınçlı sirkülasyon sistemi
Sürgü:	M8*1,25	Kors Numarası:	Firestone W01-358-7023
Sıcaklık aralığı:	- 40°C / +70°C	Stil:	19
Vurgulamak:	Firestone convoluted air spring , welding flange rubber air bags , industrial air spring with warranty

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

Product Overview

Brand: GUOMAT

Model Name: 1H7023

Type: Convoluted Type Air Spring

Material: Rubber and Steel

Warranty: 12 Months

OEM & Cross Reference Numbers

FIRESTONE STYLE: 18
FIRESTONE Part Number: W01-358-7023
FIRESTONE Part Number: W01 358 7023
FIRESTONE Part Number: W013587023
FIRESTONE Part Number: WO1-358-7023
FIRESTONE Part Number: WO1 358 7023
FIRESTONE Part Number: WO13587023

Technical Specifications

Flange diameter	250mm
Bolts	12pcs - M8*1.25
Bolt height	36mm
Inner diameter	183.5mm
Natural height	110mm
Minimum height	50.8mm
Maximum height	152.4mm

Welded Flange Air Spring Design

Welded flange air springs use a permanently welded steel flange to connect the top/bottom plate, providing a stronger and more reliable structure compared to crimped designs.

Key Features

High Strength Connection - Welded structure ensures durability under heavy load and vibration
Excellent Air Tightness - Reduced risk of air leakage, longer service life
Stable Installation - Firm mounting, no loosening during operation
Fatigue Resistant - Suitable for continuous compression cycles

Firestone Style 19 Compatible Parts

Blind nuts, 1/4 NPT
W013587008, W01-358-7008, W01 358 7008

Blind nuts, 1/4 NPT, bumper
W013587009, W01-358-7009, W01 358 7009

Blind nuts, 3/4 NPT
W013587011, W01-358-7011, W01 358 7011

Blind nuts 3/4 NPT, bumper
W013587012, W01-358-7012, W01 358 7012

Countersunk steel bead rings 15/8 bolts, nuts, washers
W013587023, W01-358-7023, W01 358 7023

Rubber bellows only
W013580134, W01-358-0134, W01 358 0134

Product Drawing
