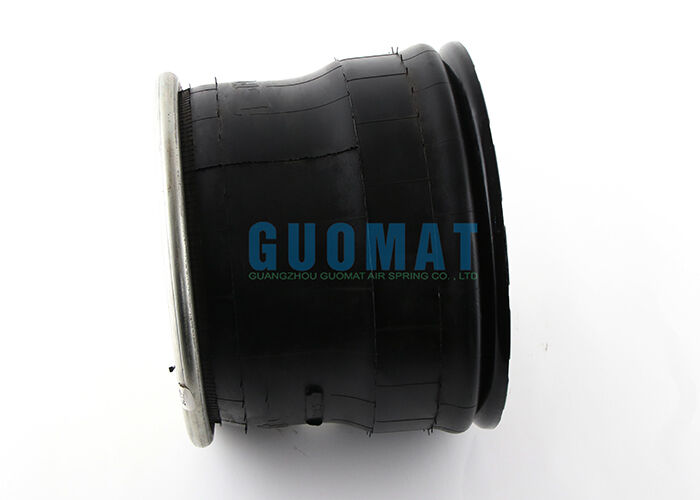

W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber

W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber

  • W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber
  • W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber
W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber
Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: GUOMAT
Sertifika: ISO/TS16949:2009
Model numarası: 1T9400
Ödeme & teslimat koşulları:
Min sipariş miktarı: 6 adet
Fiyat: $79.9-89.9/pc
Ambalaj bilgileri: Güçlü Karton Kutu Veya Müşterilerin İhtiyaç Duyduğu Gibi
Teslim süresi: 2-8 iş günü
Ödeme koşulları: L/C,T/T,Western Union
Yetenek temini: 1000 adet/hafta
İletişim
Detaylı ürün tanımı
Yay Tipi: Kamyon Körüğü Malzeme: Kauçuk+alüminyum alaşım
Garanti: 1 Yıl Durum: Yeni
Amaç: Değiştirme/Onarım için Araba: Otobüs/Römork/Kamyon
Hizmet: Özelleştirmeyi kabul et Ambalaj boyutu: 27*27*36(cm)
Vurgulamak:

Firestone Airide air spring for trucks

,

Truck suspension shock absorber 1T15T-1

,

Firestone Airide 1T15T-1 air spring

W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber
Product Overview
GUOMAT Number: 1T9400
Material: Natural Rubber
Warranty: 12 Months
MOQ: 10 Pieces
Suspension Type: Air Suspension
Application: Heavy Duty Truck
Car Fitment: ERF Truck/Hendrickson/Trailer
Packing: 1. Neutral packaging
2. According to customer requirements
Cross-Reference Part Numbers
Firestone Style Number: 1T15T-1
Firestone Numbers: W01-358-9400, W01 358 9400, W013589400
Firestone Style 1T15T-1 Variants
Blind nuts, 1/4NPT: W01-358-9400, W01 358 9400, W013589400
Blind nuts, 1/4NPT, bumper: W01-358-9402, W01 358 9402, W013589402
Blind nuts, 3/4NPT: W01-358-9401, W01 358 9401, W013589401

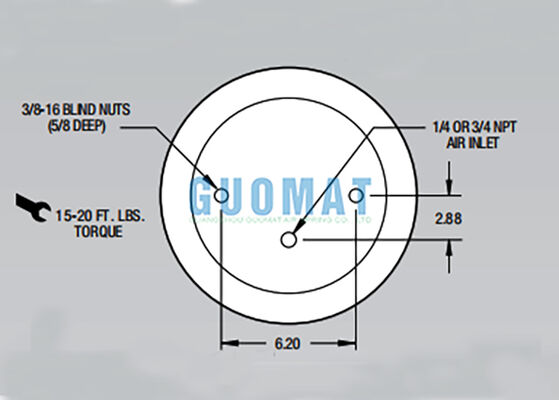

Technical Specifications
Top Cover Diameter: 9.00 inches
Top Cover Bolts: Two 3/8-16 bolts
Bolt Center Distance: 6.2 inches
Vent Gauge: 1/4 NPT
Vent to Threaded Hole Distance: 2.88 inches
Base Diameter: 9.25 inches
Base Bolt: One 1/2-13 bolt
Base Height: 2.00 inches
Max Outer Diameter: 11.2 inches
Natural Height: 7.00 inches
Maximum Height: 12.00 inches
Minimum Height: 4.00 inches
Volume @ 100 PSIG: 373 in³
Natural Frequency Data
Gage Pressure (PSIG) Load (lbs.) Spring Rate (lbs./in.) CPM HZ
40 2100 658 105 1.75
60 3220 908 100 1.66
80 4370 1168 97 1.62
100 5490 1408 95 1.58
Assembly Height Performance Data
Assembly Height (in.) Volume @ 100 PSIG (in³) @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
10 541 920 1750 2600 3470 4410
9 490 1030 2010 3050 4050 5130
8 433 1100 2090 3210 4330 5470
7 373 1110 2100 3220 4370 5490
6 314 1160 2190 3330 4480 5650
5 251 1450 2570 3780 5010 6290
W01-358-9400 Firestone Airide Air Spring 1T15T-1 Truck Suspension Shock Absorber 0
