1R8-034 Goodyear Truck Suspension 566-16-3-007 Rolling Lobe Air Spring For GMC 10530086

1R8-034 Goodyear Truck Suspension 566-16-3-007 Rolling Lobe Air Spring For GMC 10530086

  • 1R8-034 Goodyear Truck Suspension 566-16-3-007 Rolling Lobe Air Spring For GMC 10530086
  • 1R8-034 Goodyear Truck Suspension 566-16-3-007 Rolling Lobe Air Spring For GMC 10530086
1R8-034 Goodyear Truck Suspension 566-16-3-007 Rolling Lobe Air Spring For GMC 10530086
Ürün ayrıntıları:
Menşe yeri: Guangzhou Çin
Marka adı: GUOMAT
Sertifika: ISO/TS16949, ISO9001
Model numarası: 1T8034
Ödeme & teslimat koşulları:
Min sipariş miktarı: 5 adet
Fiyat: USD79.9-99.9/PC
Ambalaj bilgileri: Güçlü Karton Kutu veya Müşterilerin Gereksinimi Olarak
Teslim süresi: 3-7 iş günü
Ödeme koşulları: L/C,T/T,Western Union veya Diğerleri
Yetenek temini: 1000 adet/hafta
İletişim
Detaylı ürün tanımı
Ürün malzemesi: Kauçuk + Çelik Araba Markası: Kamyon veya Römork
Kalite: %100 Test Edildi GTİP Kodu: 8708809000
Satış Sonrası Hizmet: 12 ay Parça: Kamyon Hava Süspansiyon Yayı
Goodyear: 1R8-034 Ateş taşı: W01-358-5710/W01-358-5730
Vurgulamak:

Goodyear truck air spring

,

GMC suspension air spring

,

rolling lobe air spring

1R8-034 Goodyear Truck Suspension 566-16-3-007 Rolling Lobe Air Spring For GMC 10530086
Product Overview

The 1R8-034 Goodyear Truck Suspension Air Spring is a high-quality rolling lobe air spring designed specifically for GMC truck applications. This component provides superior vibration isolation and load distribution for enhanced ride comfort and vehicle stability.

Technical Specifications
Item Name Truck Air Spring
Brand GUOMAT
Model Number 1T8034
Bottom Plate/Piston Type Composite

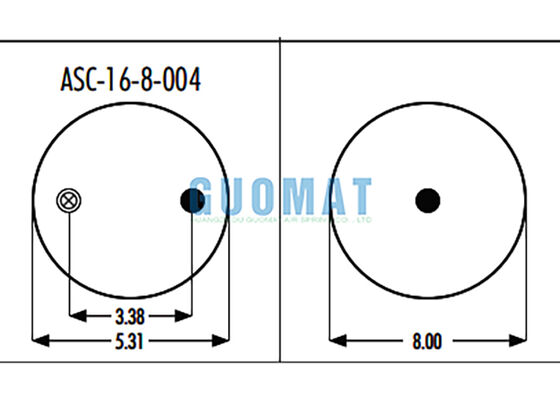

Top Plate Hole/Stud Qty 2
Top Plate Diameter 5.31
Top Plate C to C Diameter 3.38
Bottom Plate Hole Stud Qty 1
Bottom Plate Diameter 8
Bottom Plate Alignment Parallel
Bumper No

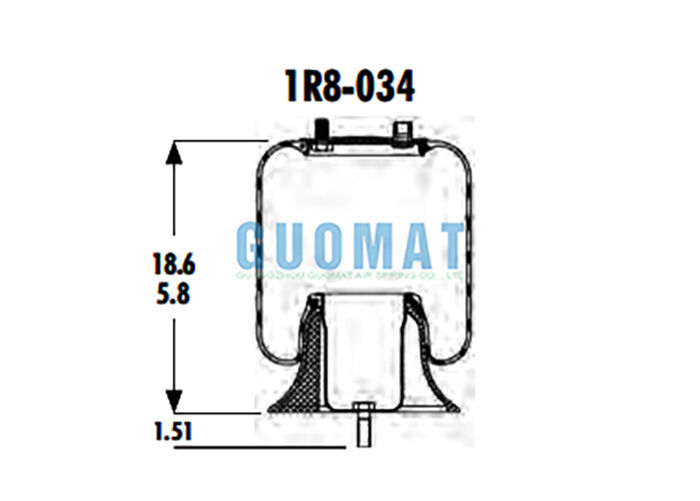

Minimum Height 5.8
Maximum Height 18.6
Replacement Part Numbers
Goodyear: 1R8-034 / 1R 8-034 / 1R8 034 / 1R8034
Goodyear: 566-16-3-007 / 566 16 3 007 / 566163007
Goodyear: Piston 566-16-7-021 / 566 16 7 021 / 566167021
Firestone: 5710
Firestone: W01-358-5710 / W01 358 5710 / W013585710
Firestone: 5730
Firestone: W01-358-5730 / W01 358 5730 / W013585730
Vehicle Compatibility
Manufacturer Part Numbers
FLXIBLE 6-304-156; 6-336-175
GMC 10530086; 6617550; 698634
GMC CONT. 8870484; G5008051
LES AUTOBUS 10530086; 698934; G5001705
NOVABUS G5001705; G5001706
PREVOST 63-0226
Industry Outlook

With the rapid development of the commercial vehicle industry, truck air springs are becoming increasingly important in modern suspension systems. As logistics, long-haul transportation, and fleet operations continue to grow, the demand for better ride comfort, higher durability, and lower maintenance costs is driving the adoption of air suspension technology.

One clear trend is the shift from traditional steel springs to air springs in more truck segments. Air suspension systems offer adjustable height, improved vibration isolation, and better load distribution, making them ideal for modern trucks that need to operate efficiently under varying load conditions.

Another key factor is the increasing focus on driver comfort and safety. Long-distance drivers spend extended hours on the road, and reducing vibration and fatigue has become a priority for fleet operators. High-quality air springs help create a smoother driving experience, which can improve driver performance and reduce wear on vehicle components.

In addition, stricter regulations on road safety and vehicle performance in many markets are encouraging manufacturers to adopt advanced suspension systems. Air springs contribute to better vehicle stability, improved braking performance, and more consistent ride height, all of which support safer operations.

Looking ahead, truck air springs are also expected to evolve with smarter suspension systems, including electronically controlled air suspension (ECAS), which can automatically adjust air pressure based on road conditions and load changes.

Overall, truck air springs will continue to play a key role in the future of commercial vehicles, offering a combination of comfort, efficiency, and durability that meets the needs of modern transportation.

Product Images
