1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1b8x6

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$49.9-59.9/pc
Ambalaj bilgileri:	Güçlü karton kutusu veya müşterilerin ihtiyaç duyduğu gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	T/T, Western Union, L/C
Yetenek temini:	Haftada 1000pcs

İletişim

Detaylı ürün tanımı

Malzeme:	Kauçuk ve çelik	Garanti:	12 ay
İşlev:	Şoku azaltmak	Kauçuk Tipi:	Doğal kauçuk
Ürün adı:	Hava yayı/hava yayı/hava yastığı	Çalışma İnme:	120mm
Hava takımı:	1/4-18NPT	Goodyear:	1B8-580
Vurgulamak:	Goodyear air suspension spring assembly , Firestone rubber air shock , industrial air spring with warranty

1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock

Product Description

Industrial Air Spring

GUOMAT Number	1B8X6
Working Temperature	-40℃ to +70℃
Failure Testing	≥3 millions

Technical Data

Top Cover Plate Diameter: 135mm
Bottom Cover Plate Diameter: 135mm
Gas Hole / Air inlet: 1/4-18NPT
Rubber Bellows Natural Diameter: 190mm
The Working Stroke: MAX 180 mm to MIN 60 mm
Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Screw Center Distance of Top Cover Plate: 70mm
Screw Center Distance of Bottom Cover Plate: 70mm

Notice: These air suspension bags are aftermarket ones. They will replace the original air spring bags. Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. Instruction isn't included. Professional installation is recommended. Contact us please for whatever we can help.

OEM Numbers

GOODYEAR Air Spring Part Number: 1B8-580

GOODYEAR Air Spring Part Number: 1B 8-580

GOODYEAR Air Spring Part Number: 1B8 580

GOODYEAR Air Spring Part Number: 1B8580

FIRETSONE Air Bags Part Number: W01-358-7598

FIRETSONE Air Bags Part Number: W01 358 7598

FIRETSONE Air Bags Part Number: W013587598

FIRETSONE Bellows Part Number: Style 116-1

FIRETSONE Air Bags Part Number: W01-358-7605

FIRETSONE Air Bags Part Number: W01 358 7605

FIRETSONE Air Bags Part Number: W013587605

Force Table

Assembly Height (in.)	Volume@100PSIG (in3)	Pounds Force @20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
6.0	237	360	750	1150	1580	2090
5.0	210	540	1100	1650	2240	2920
4.0	178	650	1330	2000	2710	3490
3.0	139	710	1450	2200	2980	3810

Applications of Air Springs in Paper Filter Presses

As a "Smart" Pressure Source: Multiple air chambers are arranged along the axial direction of the pressure roller, allowing for independent pressure control. This precisely compensates for the natural curvature of the roller, ensuring uniform pressure across the entire paper web and significantly improving the uniformity of paper quality.
As an Elastic Buffer: The flexibility of air springs effectively absorbs the impact from paper web joints or thickness fluctuations, protecting the equipment and reducing paper breaks. It also allows for more flexible pressure adjustment, quickly adapting to different paper types and production needs.

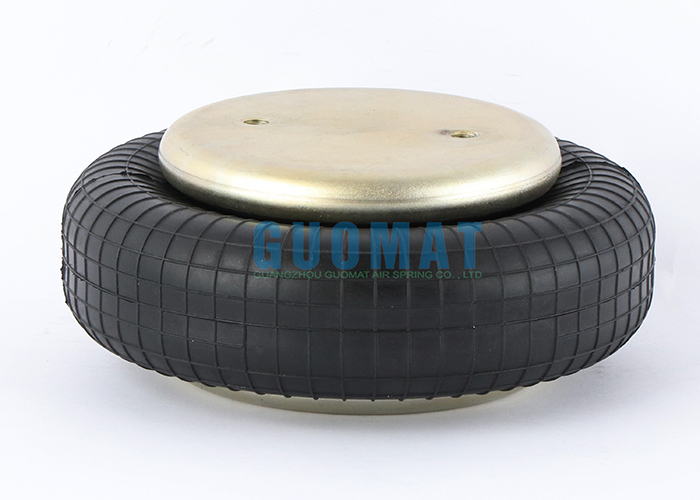

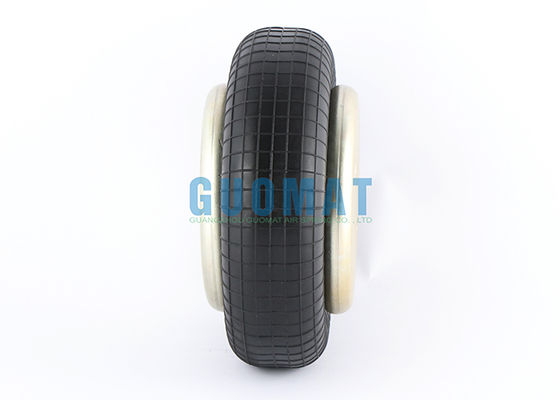

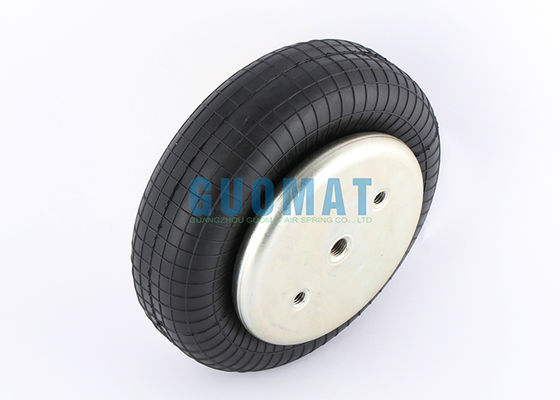

Product Images
