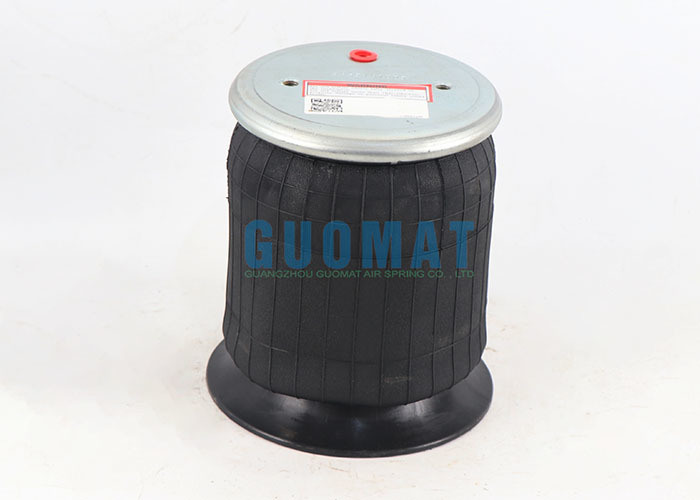

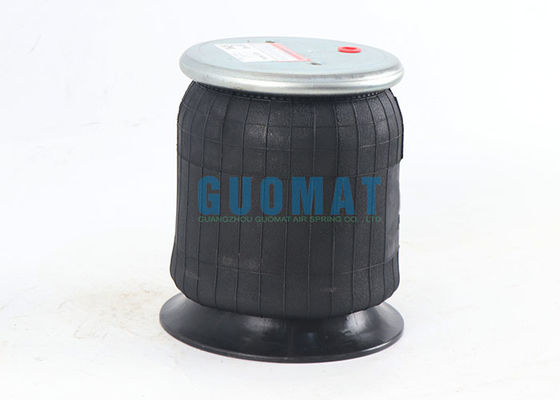

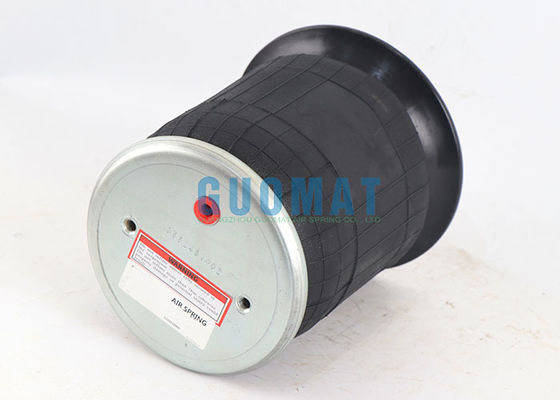

W01-358-5311 Firestone Air Spring Assembly 504035756 IVECO Truck Suspension Air Shock

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1T5311

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$89.9-99.9/pc
Ambalaj bilgileri:	Güçlü karton kutusu veya müşterilerin ihtiyaç duyduğu gibi
Teslim süresi:	3-8 iş günü
Ödeme koşulları:	L/C, T/T, Western Union
Yetenek temini:	Haftada 1000pcs

İletişim

Detaylı ürün tanımı

Ambalajlama:	Karton	Sıcaklık aralığı:	-30 ila 70°C
Uygulama:	Kamyon	Renk:	Siyah
Dayanıklılık:	Yüksek	Ateş Taşı NO.:	W01-358-5311
Iveco:	504035756	Ağırlık:	5kg
Vurgulamak:	Firestone air spring assembly for Iveco trucks , Iveco truck suspension air shock absorber , Firestone 504035756 air spring with warranty

W01-358-5311 Firestone Air Spring Assembly 504035756 IVECO Truck Suspension Air Shock

Product Overview

Truck Air Springs provide heavy load capacity and extended service life. Available in various sizes to meet specific truck requirements, these high-quality components deliver durable performance. Offered as GUOMAT or OEM branded products, conveniently packaged in cartons for easy handling and storage.

Property	Value
Packaging	Carton
GUOMAT NO.	1T5311
Mounting Type	Bolt
Product Name	Truck Air Spring
Shape	Cylindrical
Color	Black
Durability	High
Load Capacity	Heavy
Application	Truck Air Suspension
Brand	GUOMAT OR OEM
Pressure Range	0-8 Bar

OE Manufacturer Numbers

FIRESTONE NUMBER: W01-358-5311
FIRESTONE NUMBER: W01 358 5311
FIRESTONE NUMBER: W013585311
FIRESTONE BELLOWS NUMBER: 1T14C-1
FIRESTONE BELLOWS NUMBER: 1T14F-2
RIDEWELL: 1003585311C
NOTE: FLXIBLE 6-379-1
IVECO: 504035756
IVECO: 504035755
IVECO: 42535665

Technical Specifications

Natural Height: 230mm
Top Cover Plate Diameter: 160mm
Air Fitting: 1/4NPT
Threaded Hole: 3/8-16UNC
Center Distance Between Threaded Holes: 89mm
Center Distance Between Threaded Holes and Air Holes: 44mm
Base Height: 93mm
The Rubber Bellows Natural Outer Diameter: 200mm

Cross-Reference Part Numbers

Cross-Reference	PE Part No.
Contitech 6 635-11 S 031 Contitech 68112 Firestone 1T14C-1 Firestone W01-358-5311 Triangle AS-8031 TRP AS53110 Automann 1DK10-5311	Ridewell 1003585311C American Carrier 8003-017 Flxible 6-379-1 Hendrickson S-13154 Meritor 200793

Product Variations

Firestone W01-358-5310: Blind nuts, 1/4 NPT
Firestone W01-358-5311: Blind nuts, 1/4 NPT, bumper
Firestone W01-358-5305: Blind nuts, 3/4 NPT
Firestone W01-358-5306: Blind nuts, 3/4 NPT, bumper
Firestone W01-358-5307: Countersunk steel bead ring 13/4bolts, nuts, washers

Performance Data

Assembly Height(mm)	Volume@7 BAR (cu cm)	EFF Area@ 7 BAR (cm sq)	kN Force
			@3 BAR	@4 BAR	@5 BAR	@6 BAR	@7 BAR
300	6065	171	5.07	6.70	8.39	10.23	11.94
280	5704	192	5.62	7.45	9.45	11.52	13.45
260	5306	205	5.86	8.00	10.06	12.30	14.36
240	4881	210	5.89	8.15	10.28	12.60	14.73
220	4438	211	5.89	8.15	10.29	12.63	14.76
200	3967	211	5.89	8.15	10.29	12.63	14.76
180	3494	211	5.98	8.19	10.32	12.63	14.76
160	3027	220	6.39	8.59	10.80	13.188	15.37
