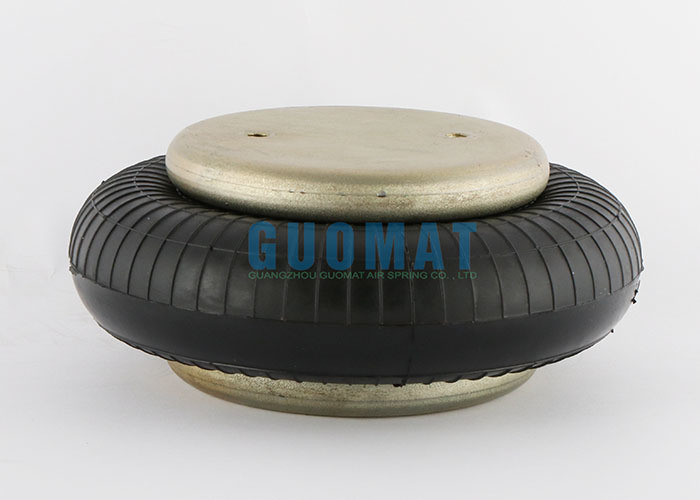

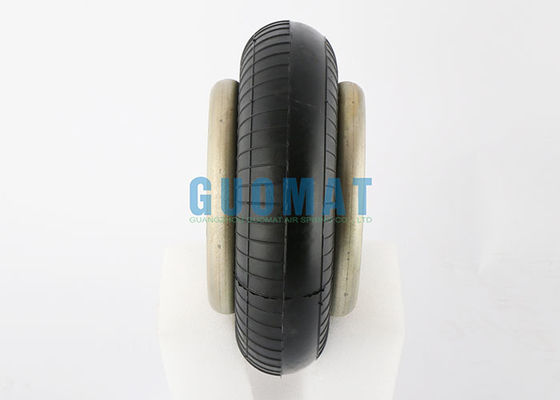

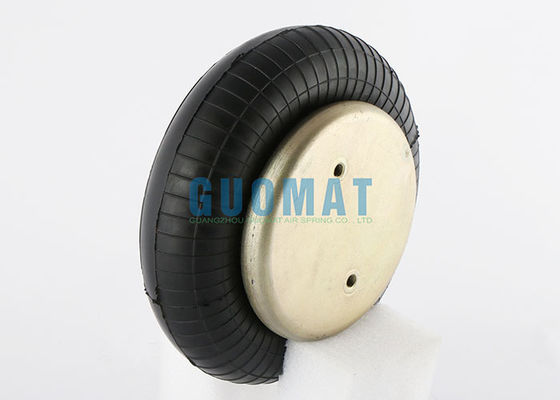

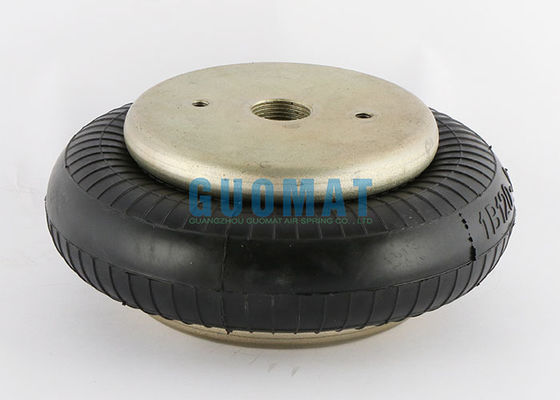

FS120-9 Contitech Industrial Air Bags WBE 300-E1 Weforma Rubber Air Spring For Pick Up

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1B1209

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$49.9-59.9/pc
Ambalaj bilgileri:	Güçlü karton kutusu veya müşterilerin ihtiyaç duyduğu gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	T/T, Western Union, L/C
Yetenek temini:	Haftada 1000pcs

İletişim

Detaylı ürün tanımı

Yaylı tür:	Tek kıvrımlı tip	Garanti:	1 yıl
Yaylı malzeme:	Metal+Kauçuk	Uygulama:	Endüstriyel Ekipman Uygulaması İçin
Gaz deliği:	G3/4	Felç:	60mm-150mm
Ateş taşı:	W01-M58-6165	Contitech:	FS120-9
Vurgulamak:	Contitech industrial air spring , WBE 300-E1 rubber air bag , pickup truck air spring

FS120-9 Contitech Industrial Air Bags WBE 300-E1 Weforma Rubber Air Spring For Pick Up

Product Description

Item Name: Air Springs Shock
Item Number: 1B1209
Warranty: 1 Year
Place of Origin: Guangdong, China
Material: Rubber+Metal
Net Weight: 2.4KG
Packing Size: 24*24*22(cm)
Application: For Industrial Equipment Shock Absorption

Technical Data

Top Cover Plate Diameter	135mm
Bottom Cover Plate Diameter	135mm
Gas Hole / Air inlet	G3/4
Rubber Bellows MAX Diameter	215mm
The Working Stroke	MAX 150mm to MIN 60 mm
Top Cover Plate Screw (Nut) Tooth	2XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	2XM8X1.25
Screw Center Distance of Top Cover Plate	70mm
Screw Center Distance of Bottom Cover Plate	70mm

GUOMAT 1B1209 Original Equipment Manufacturer Information

Description	Air Hole	Center Distance Between Screw and Air Hole	OEM Number
Rubber bellow only			CONTITECH FS 120-9 60479 FIRESTONE STYLE 116 FIRETSONE W01-358-0133
Top/bottom plate M8 (Blind nuts)	G3/4	Center	FIRETSONE W01-M58-6165 CONTITECH FS120-9 2681030000 DUNLOP(FR) 8''X1 S08101 WEFORMA WBE 300-E1 BOSH 822419003 FESTO EB-215-80 NORGREN PM/31081(8''X1)
Top/bottom plate M8 (Blind nuts)	G1/4	Center	FIRETSONE W01-M58-6166 CONTITECH FS 120-9 61358 DUNLOP(FR) 8''X1 S08100 WEFORMA WBE 300-E2 BOSH 822419008
Top/bottom plate M8 (Blind nuts)	G1/4	26mm	PHOENIX SP1B07
