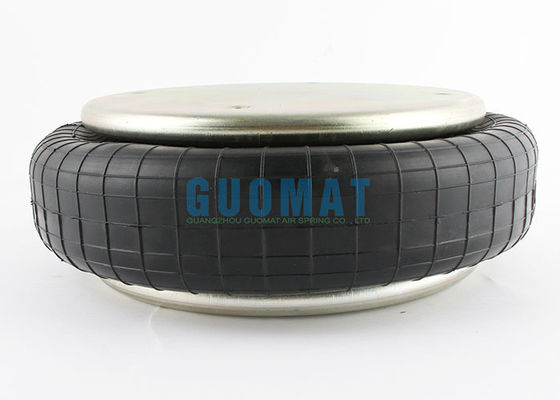

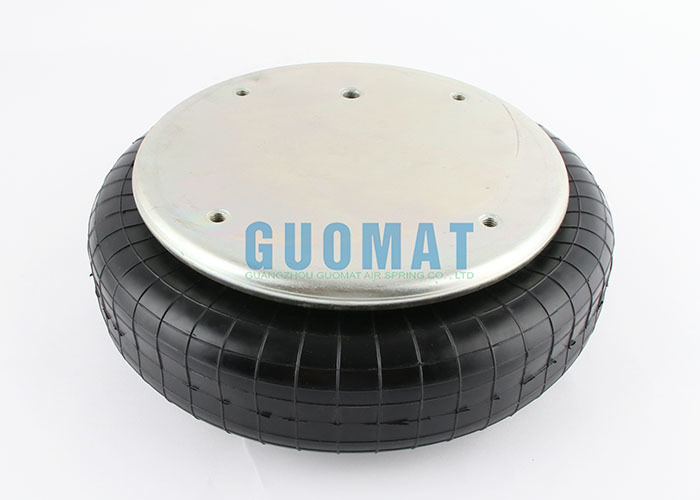

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	GUOMAT
Sertifika:	ISO/TS16949:2009
Model numarası:	1B53011

Ödeme & teslimat koşulları:

Min sipariş miktarı:	6 adet
Fiyat:	$49.9-59.9/pc
Ambalaj bilgileri:	Güçlü karton kutusu veya müşterilerin ihtiyaç duyduğu gibi
Teslim süresi:	2-8 iş günü
Ödeme koşulları:	L/C, T/T, Western Union
Yetenek temini:	Haftada 1000pcs

İletişim

Detaylı ürün tanımı

Ürün adı:	Hava Yastığı/Hava Yastığı/Havalı Süspansiyon	Garanti:	1 yıl
Malzeme:	Kauçuk + çelik	Paketleme:	Kahverengi Karton
Durum:	% 100 yepyeni	Oem:	Contitech FS530-11
Ağırlık:	5.9KG	Renk:	Siyah
Vurgulamak:	Contitech industrial air spring , 51mm-175mm stroke air actuator , convolution air actuator with warranty

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator is a high-performance air suspension component designed for industrial applications.

Product Details

Type: Single Convoluted Air Suspension Airbag
Model Number: 1B53011
Condition: Brand New
Material: Rubber + Steel
Warranty: 12 Months
Delivery Time: About 2-8 working days after receiving payment

Airbag Parameters

Cover Plate
Top Cover Plate Diameter	287mm
Bottom Cover Plate Diameter	287mm
Air Inlet
Options	G1/4; G3/4; G1
Blind Nut
Screw Center Distance Of Top Cover Plate	158.8mm
Screw Center Distance Of Bottom Cover Plate	158.8mm
Screw And Gas Hole Diameter Of Top Cover Plate	79.4mm
Top Cover Plate Screw (Nut) Tooth	4XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	4XM8X1.25
Rubber Bellow
Rubber Bellow MAX Diameter	385mm
The Working Stroke	MAX 175mm to MIN 51mm
Maximum Height	175mm
Minimum Height	51mm
Compression Height	124mm
